HHD-200ESM/EU Energy Saving Hopper Dryer. Loading capacity: 200 kg. Energy saving hot air dryer with matched heating and air flow.
PRODUCT / HHD-200ESM/EU
HHD-200ESM/EU Energy Saving Hopper Dryer
HHD-200ESM/EU Energy Saving Hopper Dryer. Loading capacity: 200 kg. Energy saving hot air dryer with matched heating and air flow.
Compare models in this seriesPRODUCT DETAILS

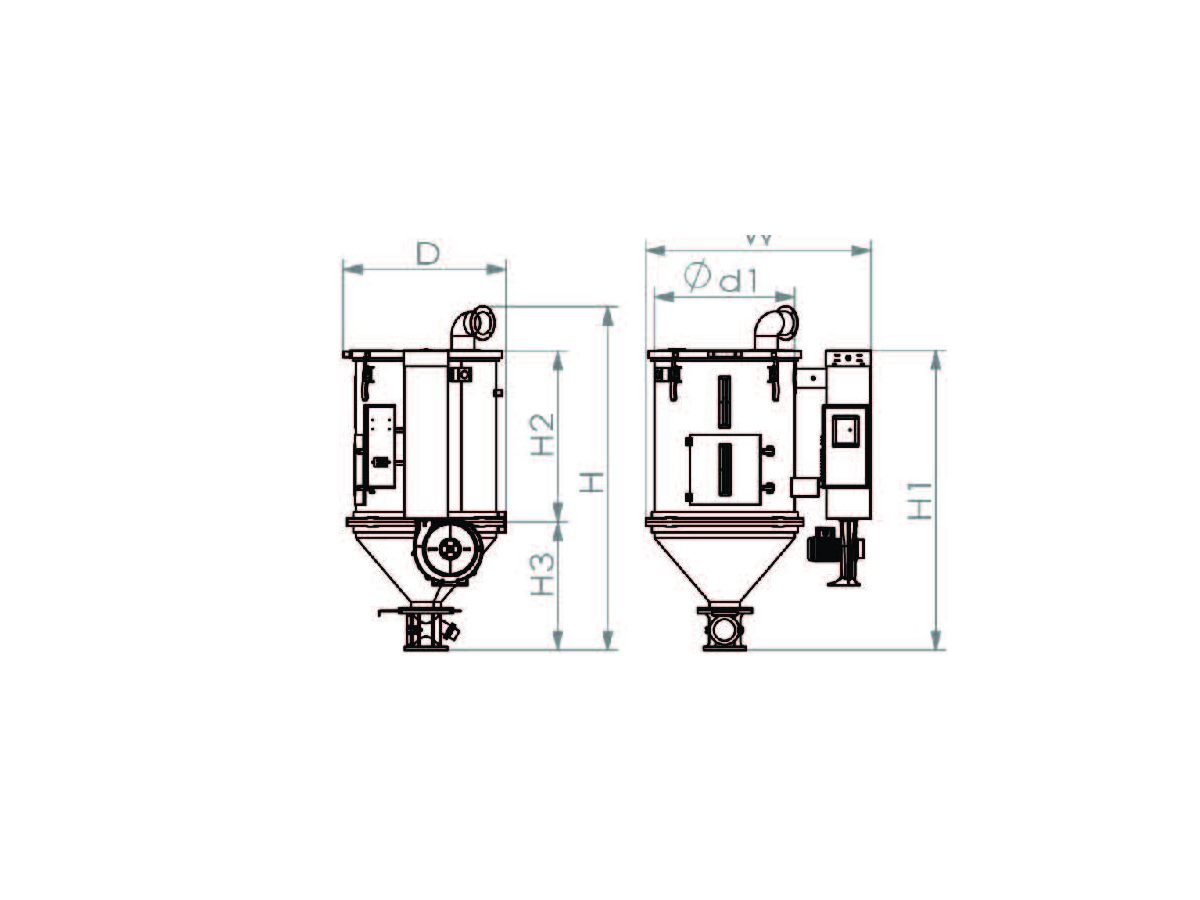

Equipment and Dimensional Reference
Features and Applications
- Energy saving hot air dryer with matched heating and air flow.
- PID temperature control, weekly scheduling and delayed blower shutdown.
HHD-200ESM/EU Technical Specifications
| Model | HHD-200ESM/EU |
|---|---|
| Loading capacity | 200 kg |
| Heater power | 10 kW |
| Blower power | 0.2 kW |
| Weight | 140 kg |
| Height H | 1710 mm |
| H1 | 1440 mm |
| H2 | 845 mm |
| H3 | 620 mm |
| Depth D | 860 mm |
| Hopper diameter d1 | 700 mm |
| Width W | 1200 mm |
Options and System Configuration
- Specify the required control and heating configuration when requesting a quotation.
Request a Quotation for HHD-200ESM/EU
Send your material, required capacity and installation requirements so we can confirm a suitable configuration.
