PRODUCT / PN000203
BITOP 24 Cavity Flower Shape Detergent Cap Mould
This BITOP catalogue example shows a 24-cavity injection mould for flower-shaped closures for laundry detergent packaging. The mould is custom-engineered to the agreed part drawing and injection-moulding setup.
- Mould cavities
- 24
- Product application
- Laundry detergent cap
- Manufacturing process
- Injection moulding
Illustrated catalogue configuration. Final construction and performance are defined by the customer-approved drawing.
PRODUCT DETAILS
Mould Overview
The mould photograph includes blue flower-shaped cap samples alongside the 24-cavity mould.
The laundry detergent cap shown here is one illustrated configuration. The finished mould must be matched to the required part dimensions, material and production equipment.
Catalogue Mould and Application Images
Catalogue Technical Details
| Mould category | Plastic injection mould |
|---|---|
| Application | Laundry detergent cap |
| Catalogue cavities | 24 |
| Illustrated example | 24 Cavity Flower Shape Laundry Detergent Cap Mould |
Catalogue Range and Project Requirements

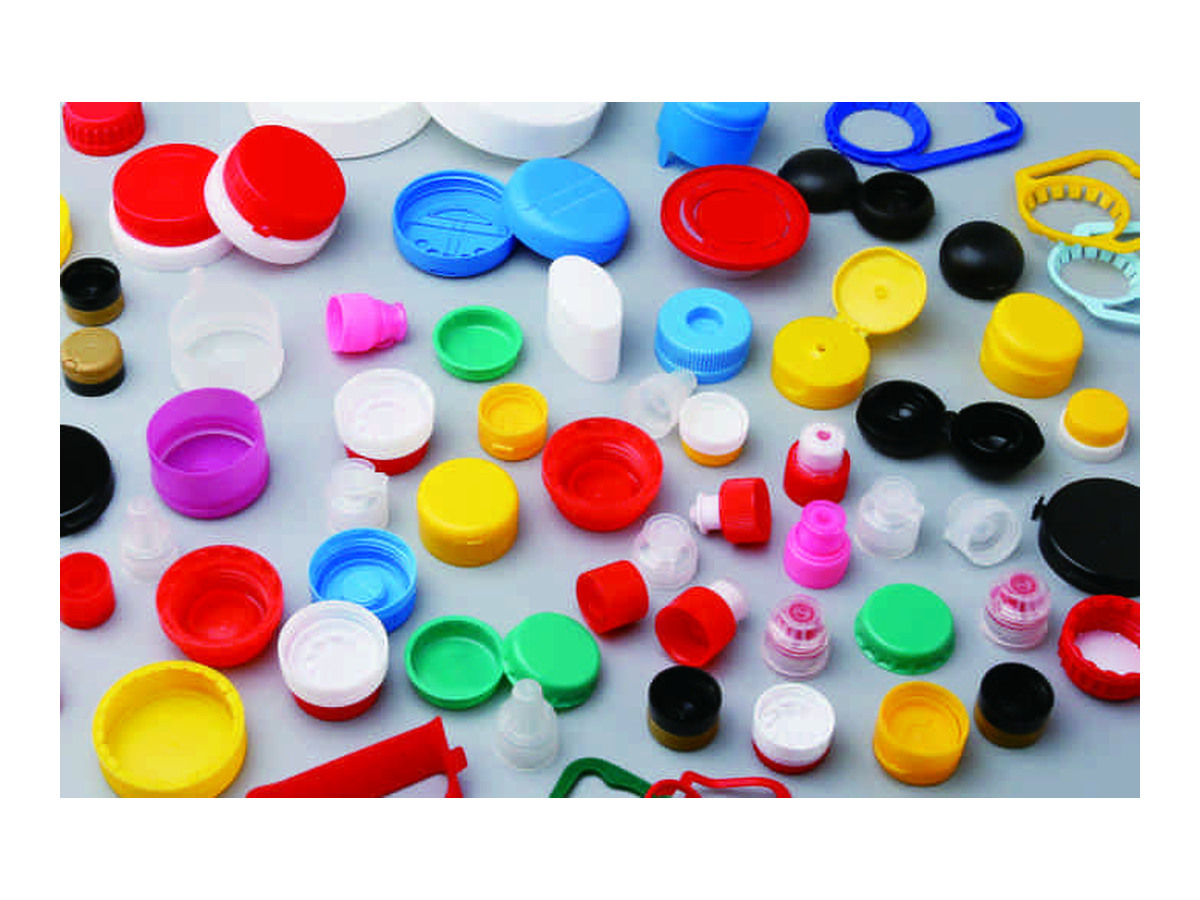

The broader BITOP cap-mould range includes one-piece and two-piece closures and configurations from 4 to 48 cavities. The brochure also illustrates various cap and neck specifications. These range details are references, not a specification for every pictured mould.
- Provide the finished part and neck-finish drawings, target cavity count and resin.
- Confirm the injection-machine interface, gate and cooling requirements before final mould design.
- Provide the detergent bottle neck and cap drawing to confirm the flower shape, fit and seal.
Request a Custom Mould Quotation
Send the part drawing, dimensions, material, required cavities and available injection-machine details. BITOP can then confirm the mould design, technical specification and quotation for your project.
