PRODUCT / EB10
EB10 All-Electric PET Blow Molding Machine
EB10 is an automatic, all-electric stretch blow molding machine in the MG-EB electric series. It is specified for containers up to 2.5L, with the exact bottle size and output determined by the mold and production setup.
- Operation
- Automatic, all-electric
- Maximum container volume
- 2.5L (tooling dependent)
- Mold cavities
- 10
- Reference output
- 15500 BPH (theoretical)
- Neck diameter
- 32 mm

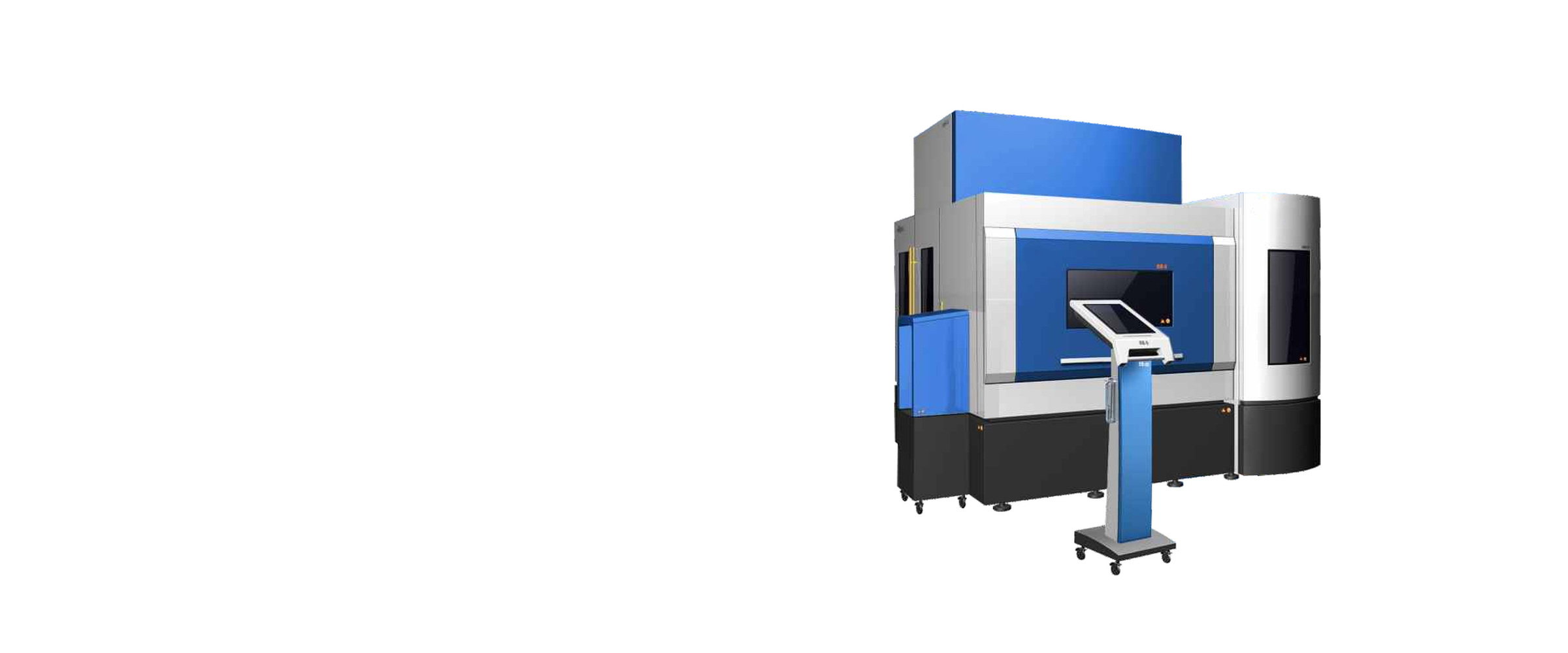

MG-EB series reference photo showing the EB10 layout. Machine appearance varies by model.
PRODUCT DETAILS
Product Overview
EB10 is intended for water and beverage bottles. The specification below lists this model's container envelope, motion settings and supporting equipment dimensions.
This model belongs to the EB range for containers up to 2.5L.

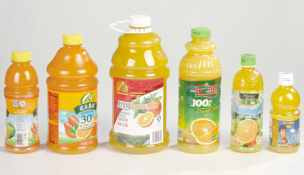

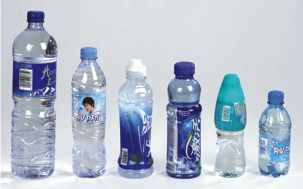

Applications
Application examples illustrate container types. Match the final bottle dimensions, neck finish and preform to this model and its tooling.
Machine Features
- All-electric linear stretch blow molding with a variable-pitch transfer unit.
- Synchronized heating and high-speed clamping support coordinated production.
- EBL models accommodate larger bottles up to 5L; EB models are rated up to 2.5L.
- The selected bottle, preform and mold determine the final production setup.
Technical Specifications
| Parameter | Unit | EB10 |
|---|---|---|
| Container material | — | PET |
| Clamping force | t | 106 |
| Clamping stroke | mm | 130 |
| Maximum stretching stroke | mm | 370 |
| Bottom moving stroke | mm | 10-70 |
| Mold cavities | — | 10 |
| Theoretical output | BPH | 15500 |
| Maximum mold thickness | mm | 260 |
| Heating zones | sections | 14 |
| Total power at full load | kW | 185 |
| Maximum container volume | L | 2.5 |
| Neck diameter | mm | 32 |
| Maximum container diameter | mm | 100 |
| Machine dimensions (L × W × H) | m | 7.8 × 2.1 × 2 |
| Preform autoloader dimensions (L × W × H) | m | 2.5 × 2 × 3 |
| Net weight | t | 9.8 |
| Power supply | — | 380 V / 3-phase / 50 Hz; other supplies on request |
Production and Configuration Notes
- Output is a theoretical reference. Actual production depends on bottle design, preform, resin, mold, air supply and operating settings.
- Maximum bottle volume, body diameter and height define separate limits; confirm the complete container design before selecting the mold.
- The specification table lists 15,500 BPH. A separate series reference cites 16,000 BPH for 0.5L water bottles; confirm the rate for the required bottle.
For a model recommendation or quotation, provide the bottle drawing, neck finish, preform details, material and required output.
