HC-05A Air Cooled Industrial Chiller. Cooling capacity: 14 kW. Microcomputer temperature control with a specified control accuracy of ±1°C.
PRODUCT / HC-05A

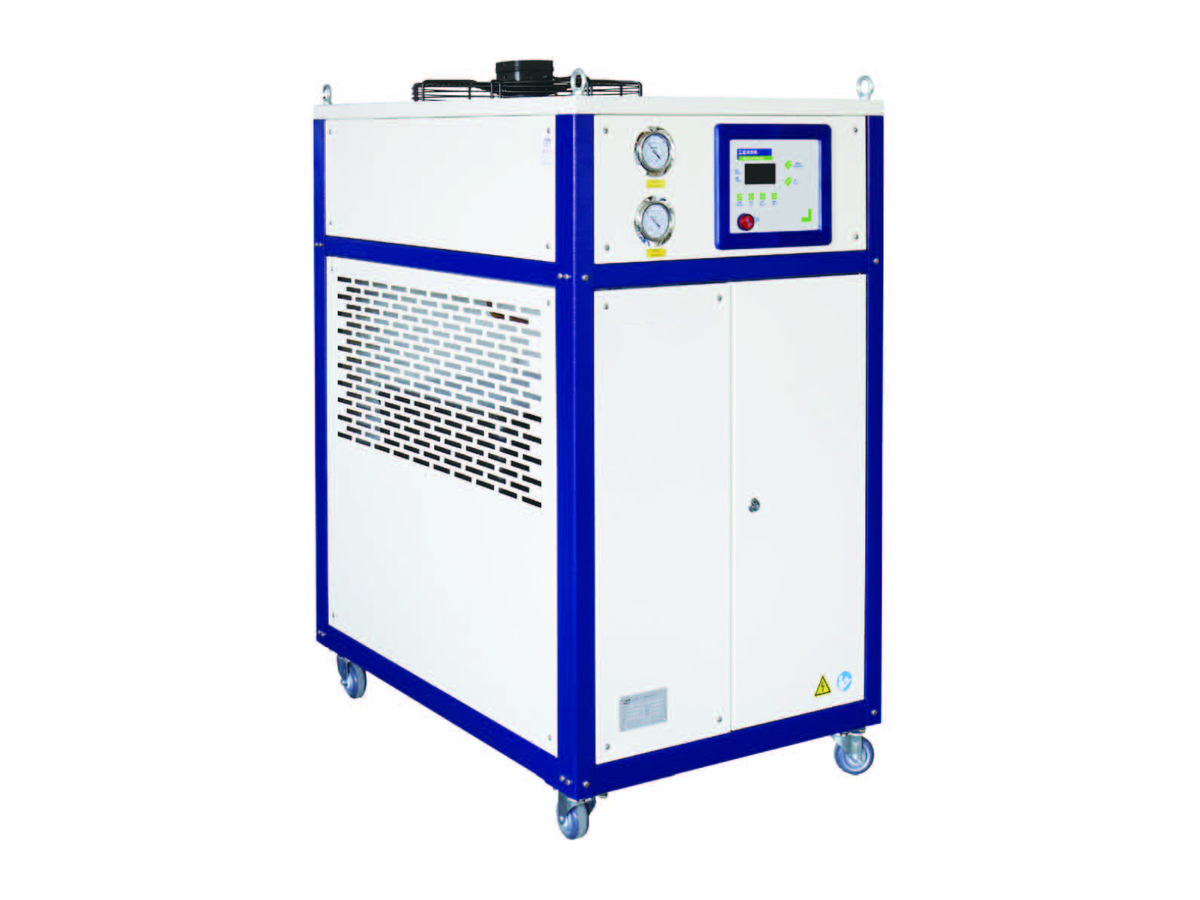

HC-05A Air Cooled Industrial Chiller
HC-05A Air Cooled Industrial Chiller. Cooling capacity: 14 kW. Microcomputer temperature control with a specified control accuracy of ±1°C.
Compare models in this seriesPRODUCT DETAILS
Equipment and Dimensional Reference
Features and Applications
- Microcomputer temperature control with a specified control accuracy of ±1°C.
- Stainless steel open water tank supports cleaning and maintenance.
- Automatic water replenishment and phase, overload, high/low pressure protection.
- Finned air cooled condenser rejects heat to the surrounding air.
HC-05A Technical Specifications
| Model | HC-05A |
|---|---|
| Cooling capacity | 14 kW |
| Cooling capacity (thermal) | 12040 kcal/h |
| Compressor power | 4.4 kW |
| Compressor type | Fully enclosed scroll |
| Pump power | 0.75 kW |
| Pump flow | 83 L/min |
| Water tank capacity | 100 L |
| Chilled water pipe | 1 inch |
| Weight | 240 kg |
| Height H | 1460 mm |
| Width W | 680 mm |
| Depth D | 1370 mm |
| Condenser fan power | 0.25 × 2 kW |
Options and System Configuration
- Alternative refrigerant configurations, distribution manifolds, high lift pumps, external tanks and HLINK connectivity can be quoted.
Selection Notes
- Rated cooling performance: chilled water outlet 15°C, cooling water inlet 30°C and ambient air 35°C.
- Select cooling capacity to suit process heat load and required water temperature.
Request a Quotation for HC-05A
Send your material, required capacity and installation requirements so we can confirm a suitable configuration.
