HD-1000F Honeycomb Dehumidifier. Dry air flow: 1000 m³/h. Honeycomb rotor dehumidification supplies dry process air for hygroscopic resins.
PRODUCT / HD-1000F
HD-1000F Honeycomb Dehumidifier
HD-1000F Honeycomb Dehumidifier. Dry air flow: 1000 m³/h. Honeycomb rotor dehumidification supplies dry process air for hygroscopic resins.
Compare models in this seriesPRODUCT DETAILS

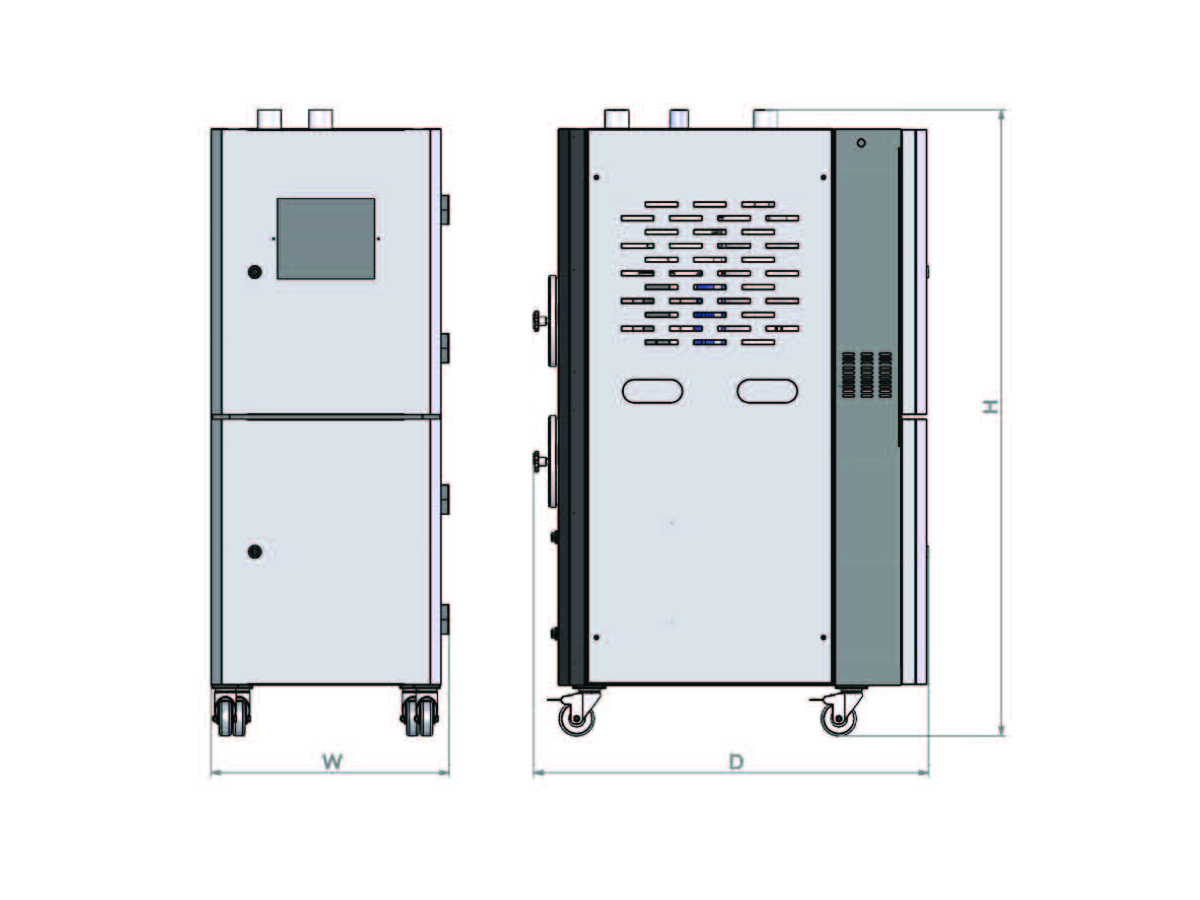

Equipment and Dimensional Reference
Features and Applications
- Honeycomb rotor dehumidification supplies dry process air for hygroscopic resins.
- PID control regulates regeneration temperature.
- Return air filtration helps protect the rotor from material dust.
- Overtemperature, motor overload and phase protection provide alarm functions.
HD-1000F Technical Specifications
| Model | HD-1000F |
|---|---|
| Dry air flow | 1000 m³/h |
| Regeneration heater power | 15 kW |
| Drying blower power | 12.5 kW |
| Regeneration blower power | 2.2 kW |
| Air pipe diameter | 5 inch |
| Rated dew point | -40 °C |
| Weight | 660 kg |
| Height H | 2120 mm |
| Width W | 1070 mm |
| Depth D | 1440 mm |
Options and System Configuration
- Optional dew point meter, HLINK connection and one-to-two dehumidification arrangement.
Selection Notes
- Dew point performance depends on material moisture, air flow and operating conditions.
