MINY / PRODUCTS
AUXILIARY MACHINERY
HHD-12E Plastic Hopper Dryer. Loading capacity: 12 kg. Hot air hopper dryer for drying plastic resin before molding.
PRODUCT / HHD-12E
HHD-12E Plastic Hopper Dryer
HHD-12E Plastic Hopper Dryer. Loading capacity: 12 kg. Hot air hopper dryer for drying plastic resin before molding.
Compare models in this seriesPRODUCT DETAILS

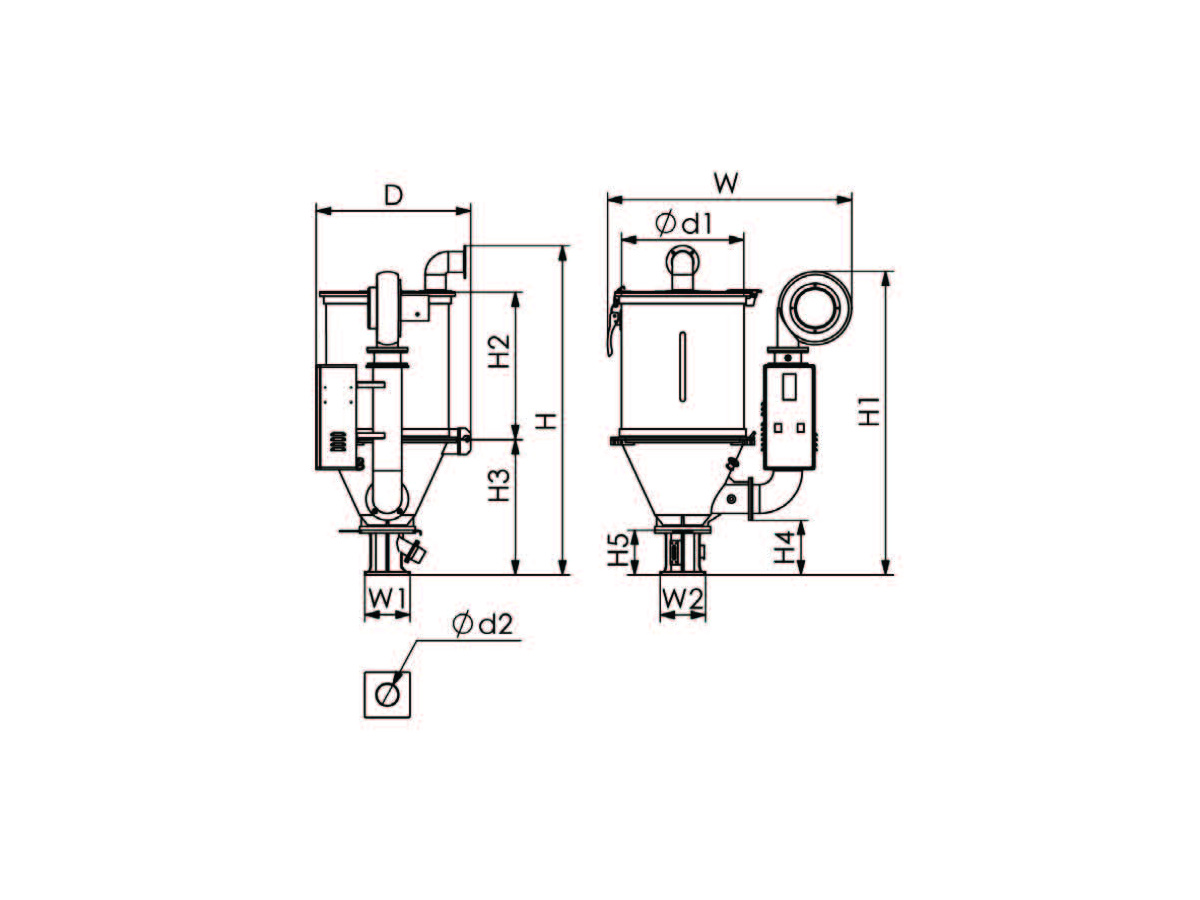

Equipment and Dimensional Reference
Features and Applications
- Hot air hopper dryer for drying plastic resin before molding.
- Digital PID control and uniform hot air distribution support stable drying.
- Stainless steel hopper and internal components; separable hopper and base simplify material changes.
- Overheat protection helps protect the dryer during operation.
HHD-12E Technical Specifications
| Model | HHD-12E |
|---|---|
| Loading capacity | 12 kg |
| Heater power | 2.1 kW |
| Blower power | 0.14 kW |
| Weight | 20 kg |
| Height H | 820 mm |
| H1 | 810 mm |
| H2 | 380 mm |
| H3 | 325 mm |
| H4 | 145 mm |
| H5 | 110 mm |
| Depth D | 470 mm |
| Hopper diameter d1 | 300 mm |
| Outlet diameter d2 | 42 mm |
| Width W | 700 mm |
| W1 | 110 mm |
| W2 | 110 mm |
Compatible Optional Accessories
| Exhaust air filter | EAF-12 |
|---|---|
| Fan inlet filter | FIF-12 |
| Magnetic base | MB-12 |
| Magnetic frame | MF-5 |
| Hot air recycler | HAR-12 |
| Ground frame | GF-50 |
| Suction box | HSB-38S / HSB-38D (1.5 inch); HSB-50S / HSB-50D (2 inch) |
| Mobile collection bin | MCBY-25 / 50; MCBX-50 / 100 / 150 / 200 / 300 / 400 / 500 |
Accessories are optional. Confirm the base, flange and pipe arrangement for the installation.
Options and System Configuration
- Magnetic base, air filters, hot air recycling, floor frame and suction box can be selected to match installation.
- HL control configuration adds a main power switch, LCD display, overtemperature trip protection and weekly timer; specified as standard from the 300E size upward.
Request a Quotation for HHD-12E
Send your material, required capacity and installation requirements so we can confirm a suitable configuration.
