HSS180 Plastic Granulator. Output range: 75–150 kg/h. Granulates plastic runners, rejects and suitable soft or rigid plastic scrap.
PRODUCT / HSS180
HSS180 Plastic Granulator
HSS180 Plastic Granulator. Output range: 75–150 kg/h. Granulates plastic runners, rejects and suitable soft or rigid plastic scrap.
Compare models in this seriesPRODUCT DETAILS

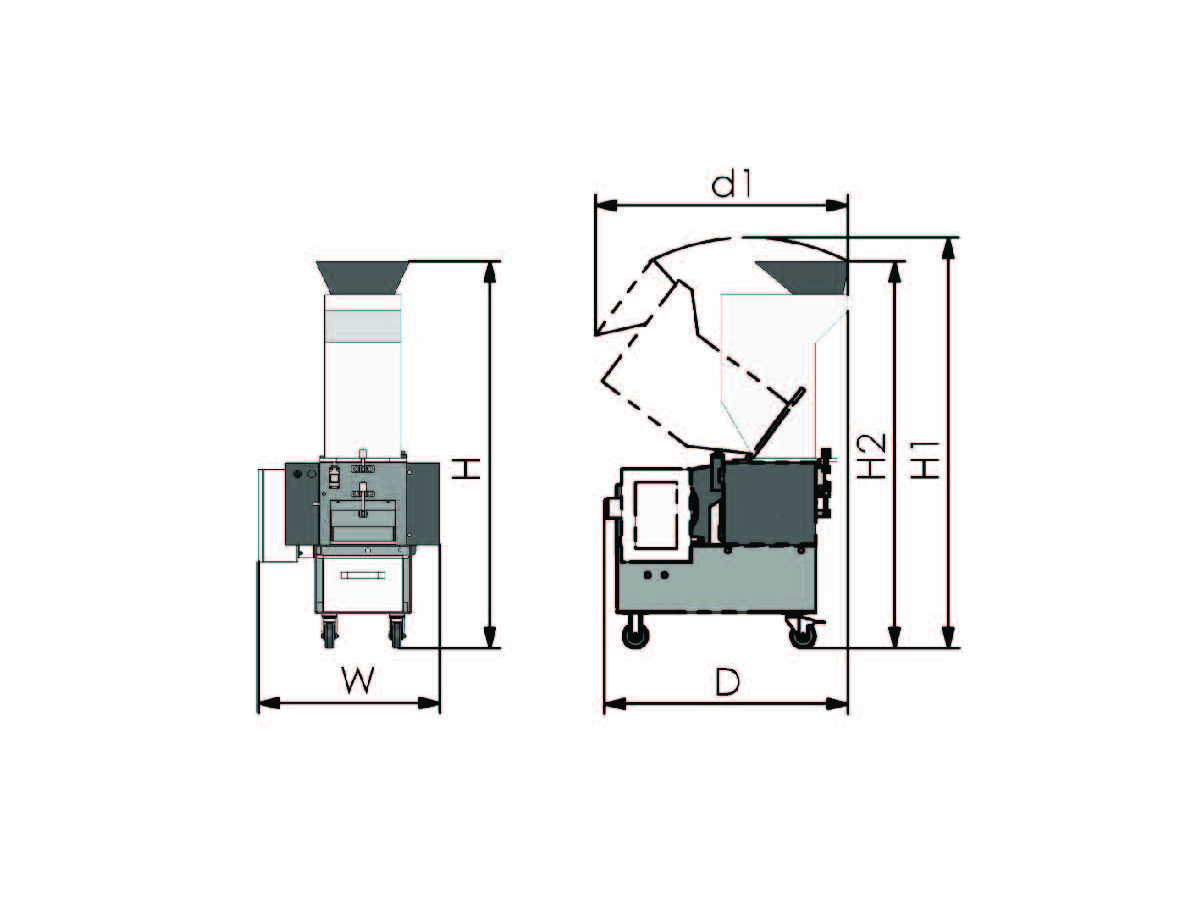

Equipment and Dimensional Reference
Features and Applications
- Granulates plastic runners, rejects and suitable soft or rigid plastic scrap.
- All steel blades with optional wear resistant SKD11 material.
- Motor overload, short circuit and hopper opening stop protection.
HSS180 Technical Specifications
| Model | HSS180 |
|---|---|
| Motor power | 2.2 kW |
| Rotor speed | 530 rpm |
| B type rotor blades | 3 pcs |
| Fixed blades | 2 pcs |
| Output range | 75–150 kg/h |
| Weight | 145 kg |
| Infeed opening | 140 × 180 mm |
| Rotor size | Ø150 × 180 mm |
| Screen hole diameter | 6 mm |
| Height H | 1160 mm |
| H1 | 1235 mm |
| H2 | 1160 mm |
| Width W | 550 mm |
| Depth D | 735 mm |
| d1 | 760 mm |
Options and System Configuration
- B type rotor configuration; A type blade count is not specified for HSS180.
- Optional blower conveying, cyclone separation and secondary dust collection.
Rotor Blade Options
Selection Notes
- Output depends on material, feed shape, blade selection and screen aperture.
- Standard supply: 3 phase, 380 V, 50 Hz.
