Mould Overview

The 6-cavity wide-mouth jar preform mould is pictured with both mould halves and jar-preform samples.

The wide-mouth jar preform shown here is one illustrated configuration. The finished mould must be matched to the required part dimensions, material and production equipment.

Catalogue Mould and Application Images

Catalogue Technical Details

Catalogue Range and Project Requirements

BITOP states that its preform injection-mould engineering covers 1 to 64 cavities. The brochure also gives a 28 mm neck and 12.5 g preform as a section example; those figures are not expressly assigned to every pictured mould.

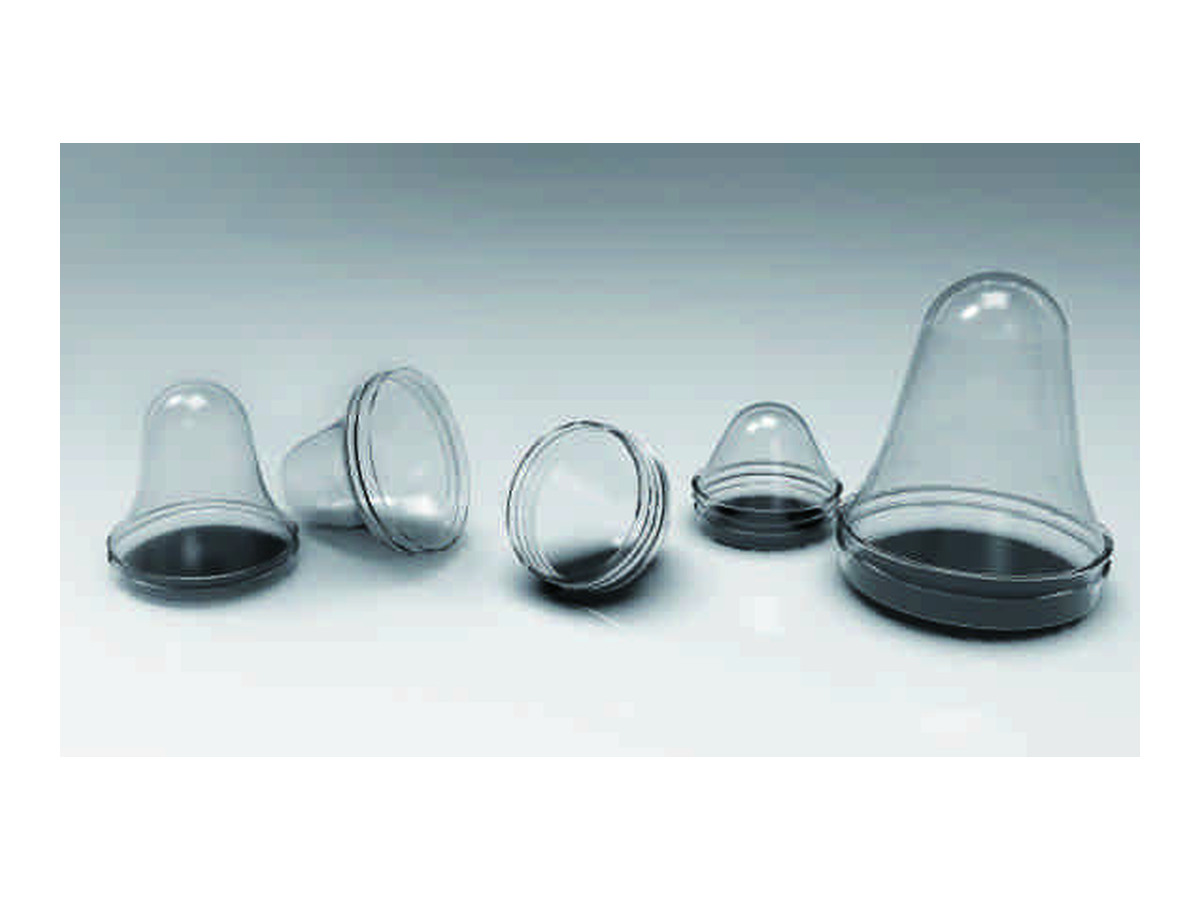

For wide-mouth jars, the catalogue mentions 53, 63, 70, 90, 110 and 120 mm neck-size options according to its stated SPI standard. Exchangeable design, valve gate and short-tail hot-runner arrangements are presented as options; confirm the selected equipment.

• Provide the finished part and neck-finish drawings, target cavity count and resin.
• Confirm the injection-machine interface, gate and cooling requirements before final mould design.
• Select the jar neck specification, preform weight, gate arrangement and injection-machine interface for the project.

Request a Custom Mould Quotation

Send the part drawing, dimensions, material, required cavities and available injection-machine details. BITOP can then confirm the mould design, technical specification and quotation for your project.
