Electrical junction box injection mould, Design 3, with grey enclosure application examples. Define enclosure size, cable entry details and cover fixing geometry.
PRODUCT / PN000215
Electrical Junction Box Injection Mould - Design 3

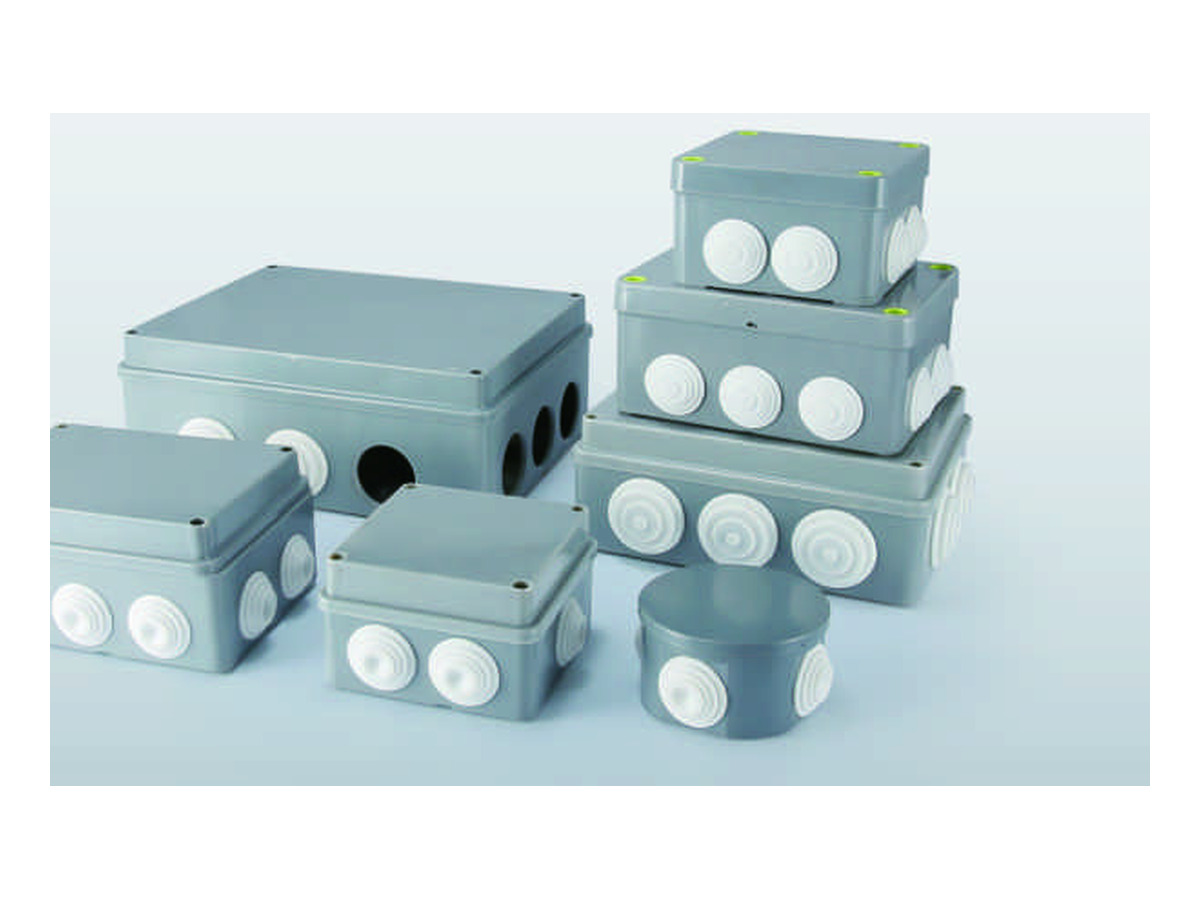

The third electrical-box mould photograph appears above a group of grey enclosure examples. These enclosures illustrate box forms and cable-entry arrangements in the same section.
- Application
- Plastic electrical enclosure
- Process
- Injection moulding
- Tooling specification
- To the approved drawing
PRODUCT DETAILS
Mould Overview
The third electrical-box mould photograph appears above a group of grey enclosure examples. These enclosures illustrate box forms and cable-entry arrangements in the same section.
Specify the finished part drawing, selected plastic material and production requirements to develop tooling for this application.
Mould and Finished Product Examples
Application and Tooling Details
| Manufacturing process | Plastic injection moulding |
|---|---|
| Application | Plastic electrical enclosure |
| Illustrated part form | Rectangular box tooling shown beside enclosure examples |
| Project specification | Customised to the approved part drawing and injection machine |
Design Requirements
Discuss the following details when requesting a quotation for this plastic electrical enclosure mould:
- Enclosure dimensions and installation method
- Cable entry and cover fixing design
- Material and any required protection assessment
- Required cavity configuration and production target
- Available injection-machine dimensions and interface
Mould steel, gate arrangement, cooling design and any performance targets are confirmed in the project specification.
Request a Mould Quotation
Send a part drawing or sample, the target dimensions and weight, plastic material, expected output and injection-machine details. These inputs allow the tooling scope and quotation to be defined.
