Produce crate injection mould, Design 2, shown with an open lattice crate. Explore the mould and finished crate reference; define ribs, handles and loading needs.

PRODUCT / PN000211

Produce Crate Injection Mould - Design 2

A separate crate mould is pictured with a green lattice-sided crate. The adjacent light-green crate is an application example from this part of the catalogue.

Application: Open-wall produce crate
Process: Injection moulding
Tooling specification: To the approved drawing

Compare moulds in this series

SEND AN INQUIRY WhatsApp +86 13566629430

PRODUCT DETAILS

Mould Overview

A separate crate mould is pictured with a green lattice-sided crate. The adjacent light-green crate is an application example from this part of the catalogue.

Specify the finished part drawing, selected plastic material and production requirements to develop tooling for this application.

Mould and Finished Product Examples

Produce Crate Injection Mould - Design 2 - illustrated tooling photograph

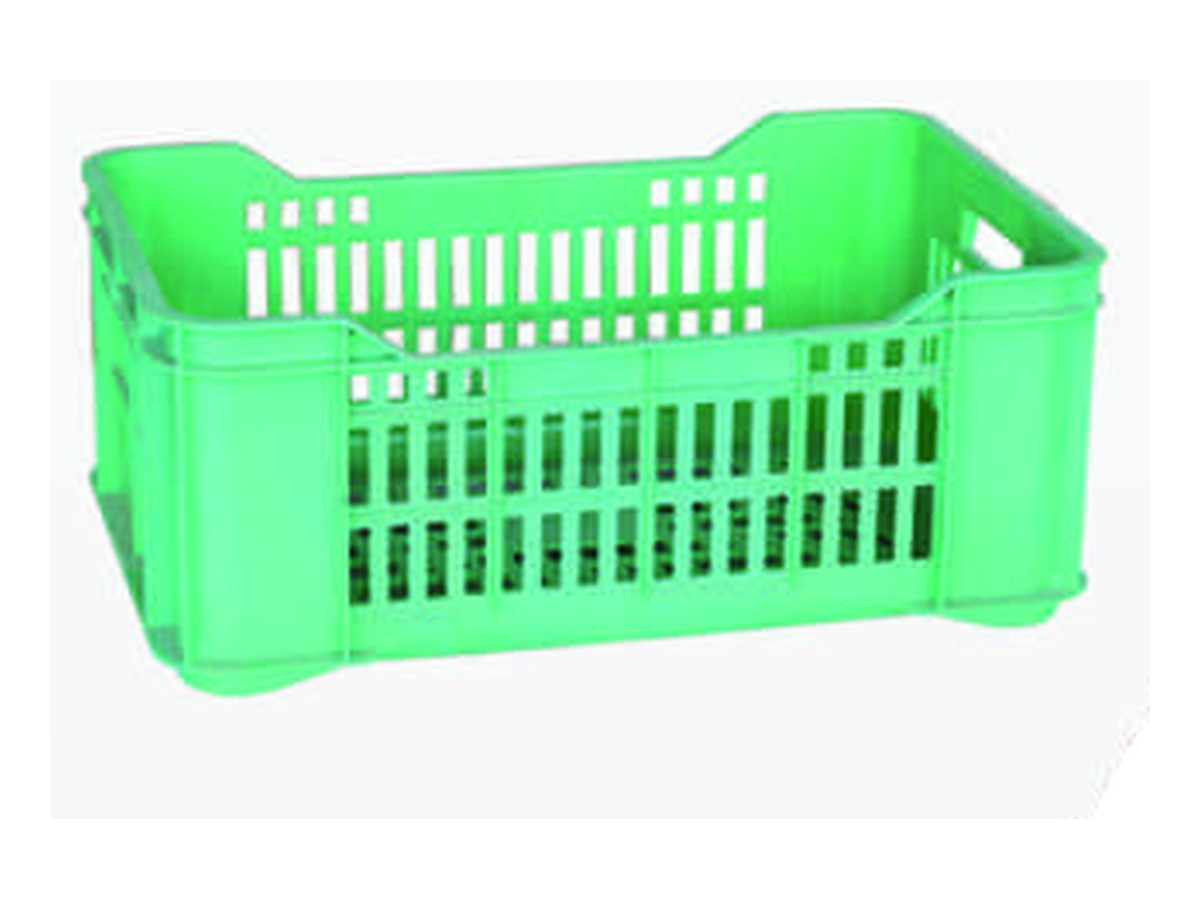

Finished crate example illustrated beside the mould in the catalogue. Final size, material and crate details follow the approved drawing.

Application and Tooling Details

Manufacturing process	Plastic injection moulding
Application	Open-wall produce crate
Illustrated part form	Ventilated crate with an open lattice pattern
Project specification	Customised to the approved part drawing and injection machine

Design Requirements

Discuss the following details when requesting a quotation for this open-wall produce crate mould:

Side openings and base rib pattern
Handle geometry and crate nesting or stacking needs
Required load and handling conditions
Required cavity configuration and production target
Available injection-machine dimensions and interface

Mould steel, gate arrangement, cooling design and any performance targets are confirmed in the project specification.

Request a Mould Quotation

Send a part drawing or sample, the target dimensions and weight, plastic material, expected output and injection-machine details. These inputs allow the tooling scope and quotation to be defined.
