Square plastic cup injection mould shown with clear tapered cups. View the tooling and cup references; specify mouth size, corner shape, surface finish and nesting.

PRODUCT / PN000220

Square Plastic Cup Injection Mould

The pictured mould is presented with transparent square-mouth cups. Their tapered sides and corner form distinguish this example from the round cup mould.

Application: Square-mouth plastic cup
Process: Injection moulding
Tooling specification: To the approved drawing

Compare moulds in this series

SEND AN INQUIRY WhatsApp +86 13566629430

PRODUCT DETAILS

Mould Overview

The pictured mould is presented with transparent square-mouth cups. Their tapered sides and corner form distinguish this example from the round cup mould.

Specify the finished part drawing, selected plastic material and production requirements to develop tooling for this application.

Mould and Finished Product Examples

Square Plastic Cup Injection Mould - illustrated tooling photograph

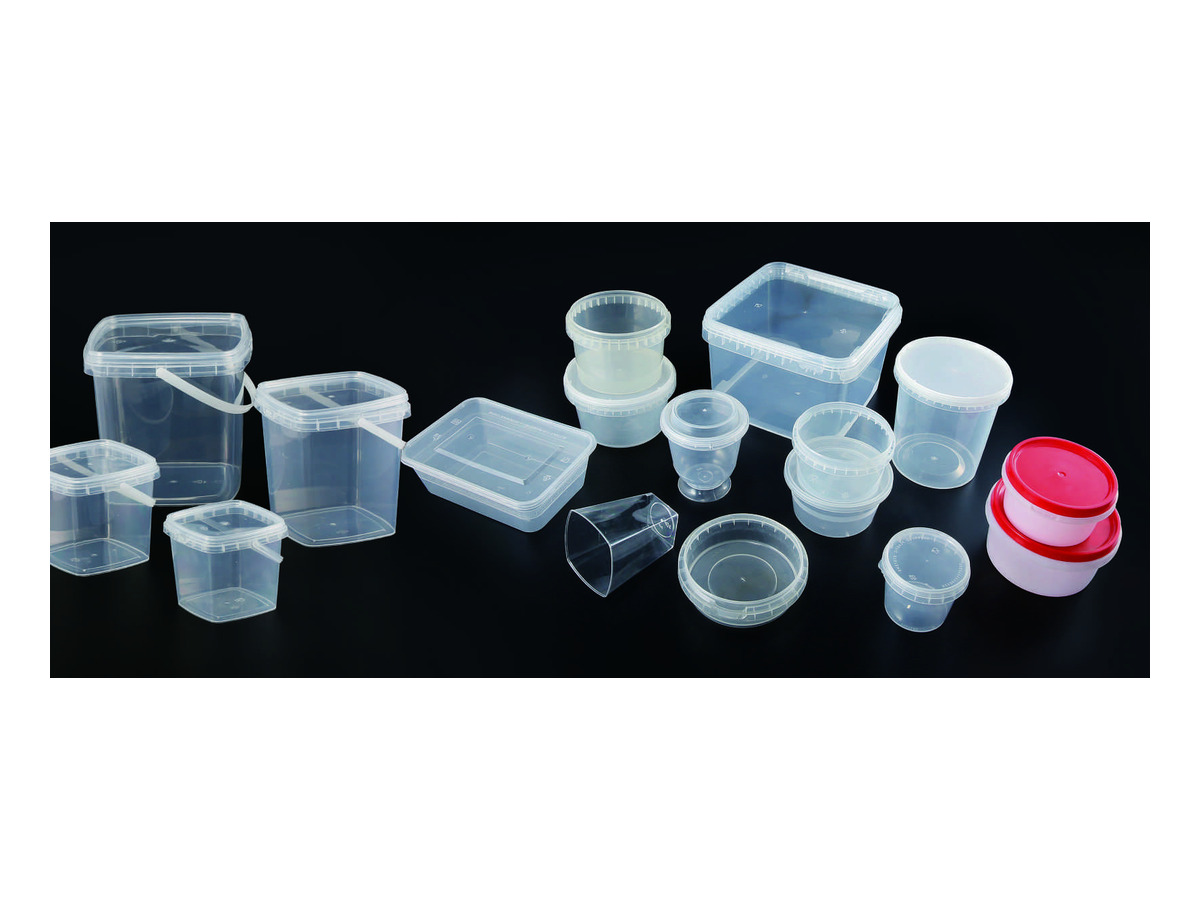

Finished product application examples from the same catalogue series. Exact dimensions, material and configuration follow the approved project drawing.

Application and Tooling Details

Manufacturing process	Plastic injection moulding
Application	Square-mouth plastic cup
Illustrated part form	Clear tapered cup with square mouth
Project specification	Customised to the approved part drawing and injection machine

Design Requirements

Discuss the following details when requesting a quotation for this square-mouth plastic cup mould:

Square mouth dimensions and corner radii
Cup taper, base form and height
Surface finish and stacking clearance
Required cavity configuration and production target
Available injection-machine dimensions and interface

Mould steel, gate arrangement, cooling design and any performance targets are confirmed in the project specification.

Request a Mould Quotation

Send a part drawing or sample, the target dimensions and weight, plastic material, expected output and injection-machine details. These inputs allow the tooling scope and quotation to be defined.
