BN-140 injection molding machine with 1400 kN clamping force, 3 screw configurations and 420 × 420 mm tie-bar spacing.
PRODUCT / BN-140
BN-140 Injection Molding Machine
BN-140 injection molding machine with 1400 kN clamping force, 3 screw configurations and 420 × 420 mm tie-bar spacing.
Compare BN series modelsPRODUCT DETAILS
BN-140 Injection Unit
A, B, C identify the available screw configurations for this machine.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Screw diameter | mm | 38 | 42 | 45 |
| Screw L/D ratio | L/D | 22 | 20 | 18.5 |
| Theoretical shot volume | cm³ | 195 | 238 | 274 |
| Shot weight (PS) | g | 178 | 217 | 249 |
| Injection pressure | bar | 2286 | 1863 | 1634 |
| Maximum screw speed | 200 rpm |
|---|
Clamping Unit
| Clamping force | 1400 kN |
|---|---|
| Opening stroke | 390 mm |
| Distance between tie-bars | 420 × 420 mm |
| Maximum mold height | 460 mm |
| Minimum mold height | 160 mm |
| Ejector stroke | 120 mm |
| Ejector force | 46 kN |
Power, Dimensions and Weight
| Fixed pump power | 13 kW |
|---|---|
| Servo motor power | 18.2 kW |
| Heating power | 7.4 kW |
| Machine dimensions | 4.6 × 1.2 × 1.8 m |
| Machine weight | 4 t |

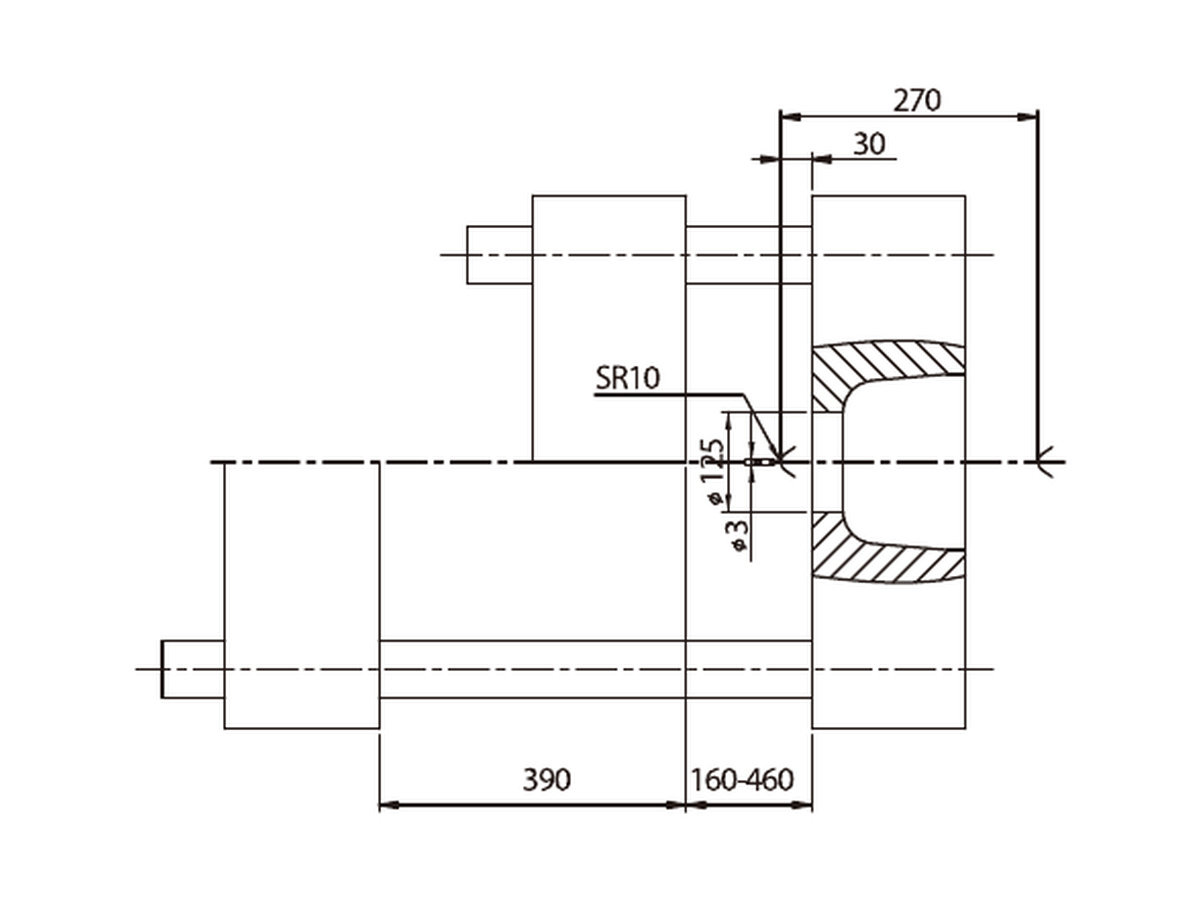

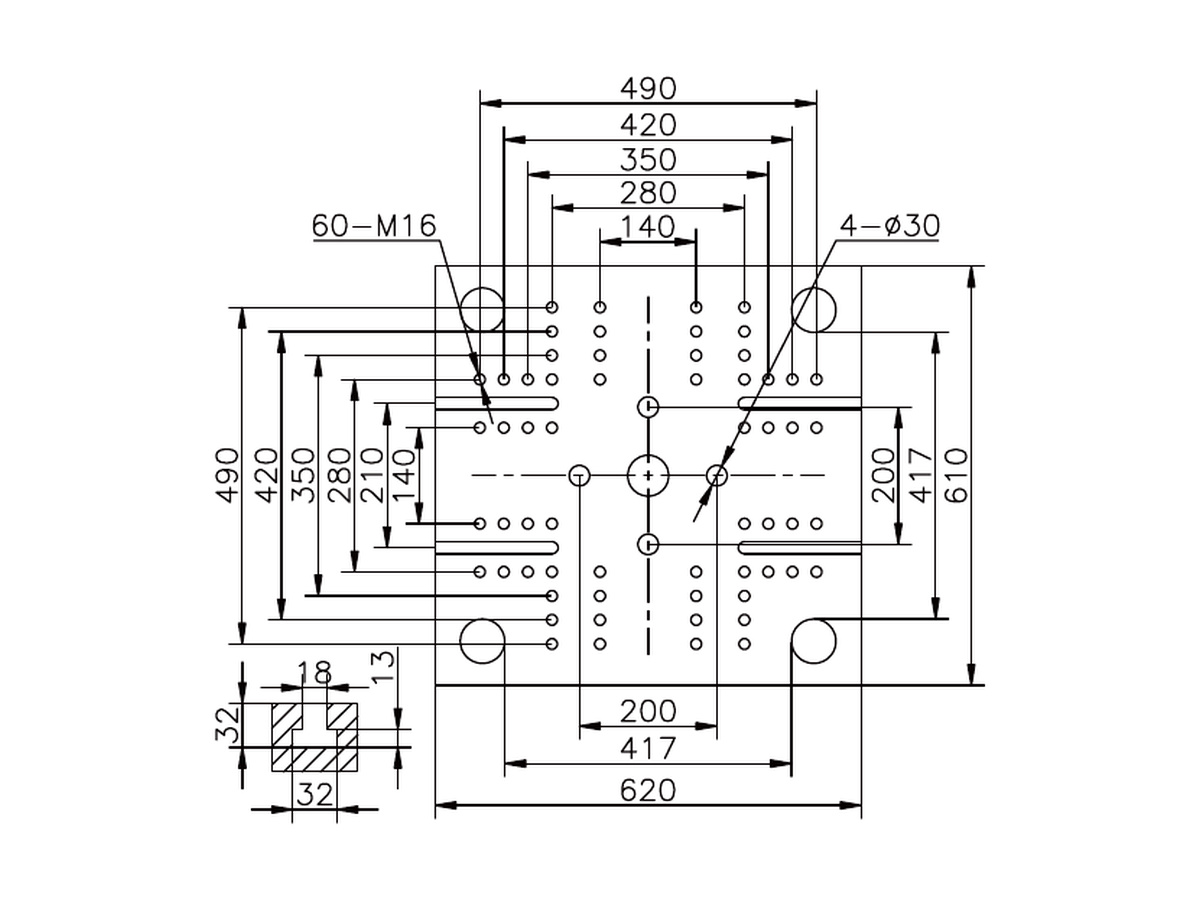

BN-140 Platen Dimensions
Machine Features
Injection Unit
Select from the screw diameters and injection capacities listed for this model. The injection assembly includes the material hopper, barrel and injection carriage.
Hydraulic Unit
Low resistance oil paths help reduce hydraulic pressure loss and operating noise. Fixed pump and servo drive configurations are selected according to the production requirements.
Electrical Unit
Operator controls support machine parameter setting and process monitoring. Curve display, SPC quality management and controller configuration are confirmed for the selected machine.
Machine Selection
- Choose the screw configuration to suit the resin, shot weight and mold requirements.
- Confirm mold fit using tie-bar spacing, mold height limits and the platen drawings.
- Fixed pump and servo motor ratings describe separate configurations; confirm the required drive system with quotation.
- Series photographs illustrate the machine structure; appearance and controller configuration may vary by model.
Request a Quotation for BN-140
Send your resin, molded part weight, mold dimensions and output requirements so we can confirm a suitable configuration.
