BN-900 Injection Molding Machine
BN-900 injection molding machine with 9000 kN clamping force, 3 screw configurations and 1125 × 1085 mm tie-bar spacing.
Compare BN series modelsPRODUCT DETAILS
BN-900 Injection Unit
A, B, C identify the available screw configurations for this machine.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Screw diameter | mm | 95 | 100 | 105 |
| Screw L/D ratio | L/D | 23 | 21 | 20 |
| Theoretical shot volume | cm³ | 3544 | 3927 | 4330 |
| Shot weight (PS) | g | 3225 | 3574 | 3941 |
| Injection pressure | bar | 2076 | 1771 | 1600 |
| Maximum screw speed | 108 rpm |
|---|
Clamping Unit
| Clamping force | 9000 kN |
|---|---|
| Opening stroke | 1100 mm |
| Distance between tie-bars | 1125 × 1085 mm |
| Maximum mold height | 1100 mm |
| Minimum mold height | 500 mm |
| Ejector stroke | 335 mm |
| Ejector force | 216 kN |
Power, Dimensions and Weight
| Fixed pump power | 45 + 45 kW |
|---|---|
| Servo motor power | 24 + 39.4 + 39.4 kW |
| Heating power | 61.3 kW |
| Machine dimensions | 11.7 × 2.8 × 3 m |
| Machine weight | 50 t |

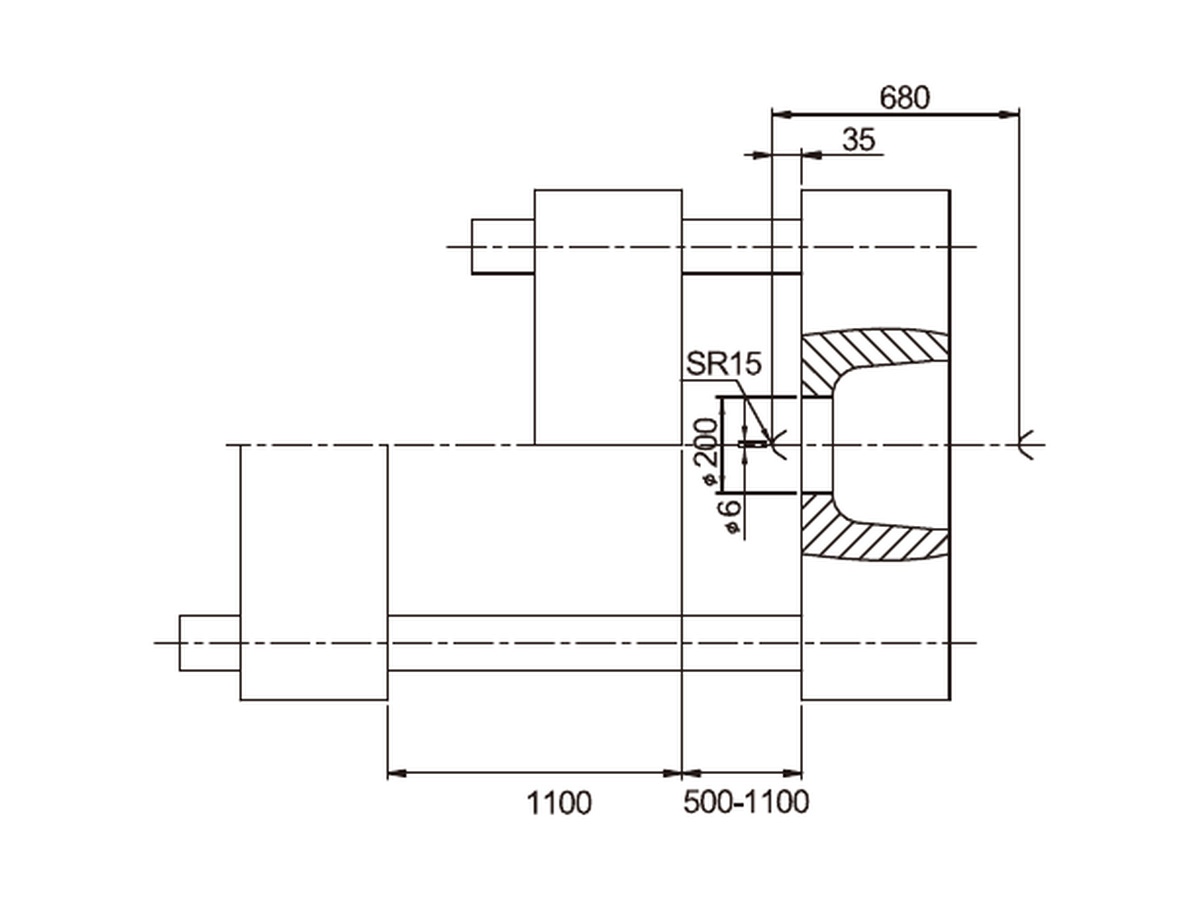

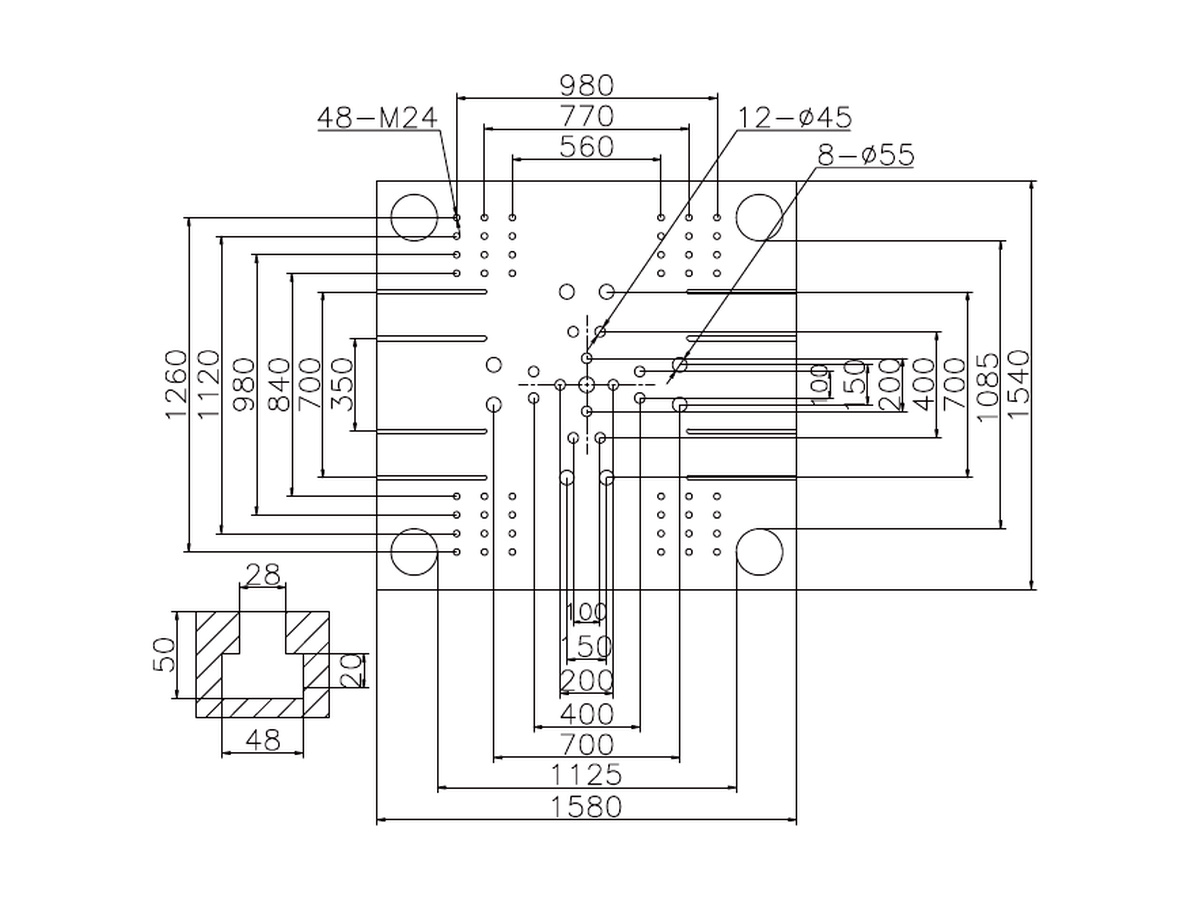

BN-900 Platen Dimensions
Machine Features
Injection Unit
Select from the screw diameters and injection capacities listed for this model. The injection assembly includes the material hopper, barrel and injection carriage.
Hydraulic Unit
Low resistance oil paths help reduce hydraulic pressure loss and operating noise. Fixed pump and servo drive configurations are selected according to the production requirements.
Electrical Unit
Operator controls support machine parameter setting and process monitoring. Curve display, SPC quality management and controller configuration are confirmed for the selected machine.
Machine Selection
- Choose the screw configuration to suit the resin, shot weight and mold requirements.
- Confirm mold fit using tie-bar spacing, mold height limits and the platen drawings.
- Fixed pump and servo motor ratings describe separate configurations; confirm the required drive system with quotation.
- Series photographs illustrate the machine structure; appearance and controller configuration may vary by model.
Request a Quotation for BN-900
Send your resin, molded part weight, mold dimensions and output requirements so we can confirm a suitable configuration.
