BN-1600 injection molding machine with 16000 kN clamping force, 4 screw configurations and 1570 × 1470 mm tie-bar spacing.
PRODUCT / BN-1600
BN-1600 Injection Molding Machine
BN-1600 injection molding machine with 16000 kN clamping force, 4 screw configurations and 1570 × 1470 mm tie-bar spacing.
Compare BN series modelsPRODUCT DETAILS
BN-1600 Injection Unit
A, B, C and D identify the available screw configurations for this machine.
| Parameter | Unit | A | B | C | D |
|---|---|---|---|---|---|
| Screw diameter | mm | 130 | 140 | 150 | 160 |
| Screw L/D ratio | L/D | 24.1 | 22.4 | 20.9 | 19.6 |
| Theoretical shot volume | cm³ | 10287 | 11930 | 13695 | 15582 |
| Shot weight (PS) | g | 9464 | 10976 | 12600 | 14336 |
| Injection pressure | bar | 2092 | 1806 | 1566 | 1383 |
| Maximum screw speed | 95 rpm |
|---|
Clamping Unit
| Clamping force | 16000 kN |
|---|---|
| Opening stroke | 1600 mm |
| Distance between tie-bars | 1570 × 1470 mm |
| Maximum mold height | 1600 mm |
| Minimum mold height | 700 mm |
| Ejector stroke | 420 mm |
| Ejector force | 320 kN |
Power, Dimensions and Weight
| Fixed pump power | 33 + 33 + 33 + 33 kW |
|---|---|
| Servo motor power | 39.4 + 39.4 + 39.4 + 39.4 kW |
| Heating power | 100 kW |
| Machine dimensions | 16.7 × 3.1 × 5.14 m |
| Machine weight | 110 t |

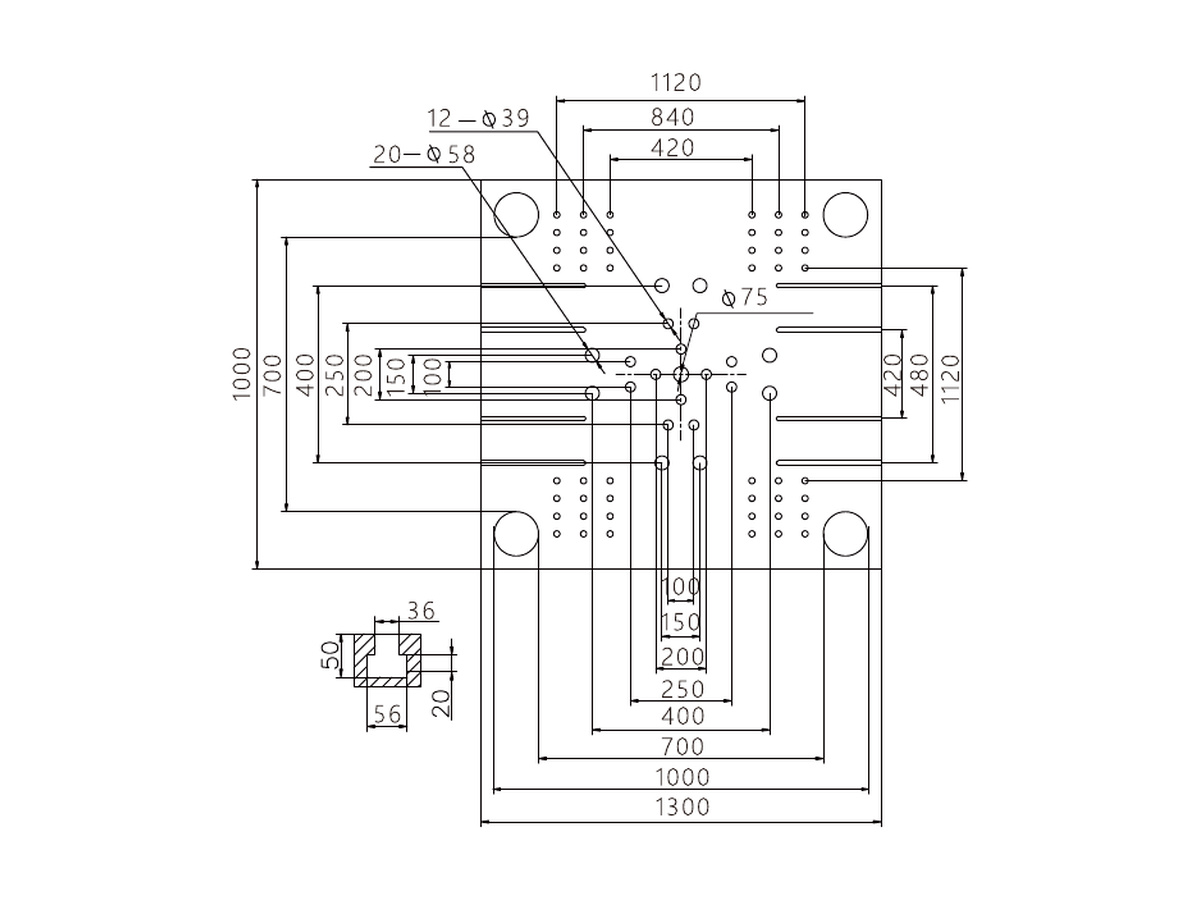

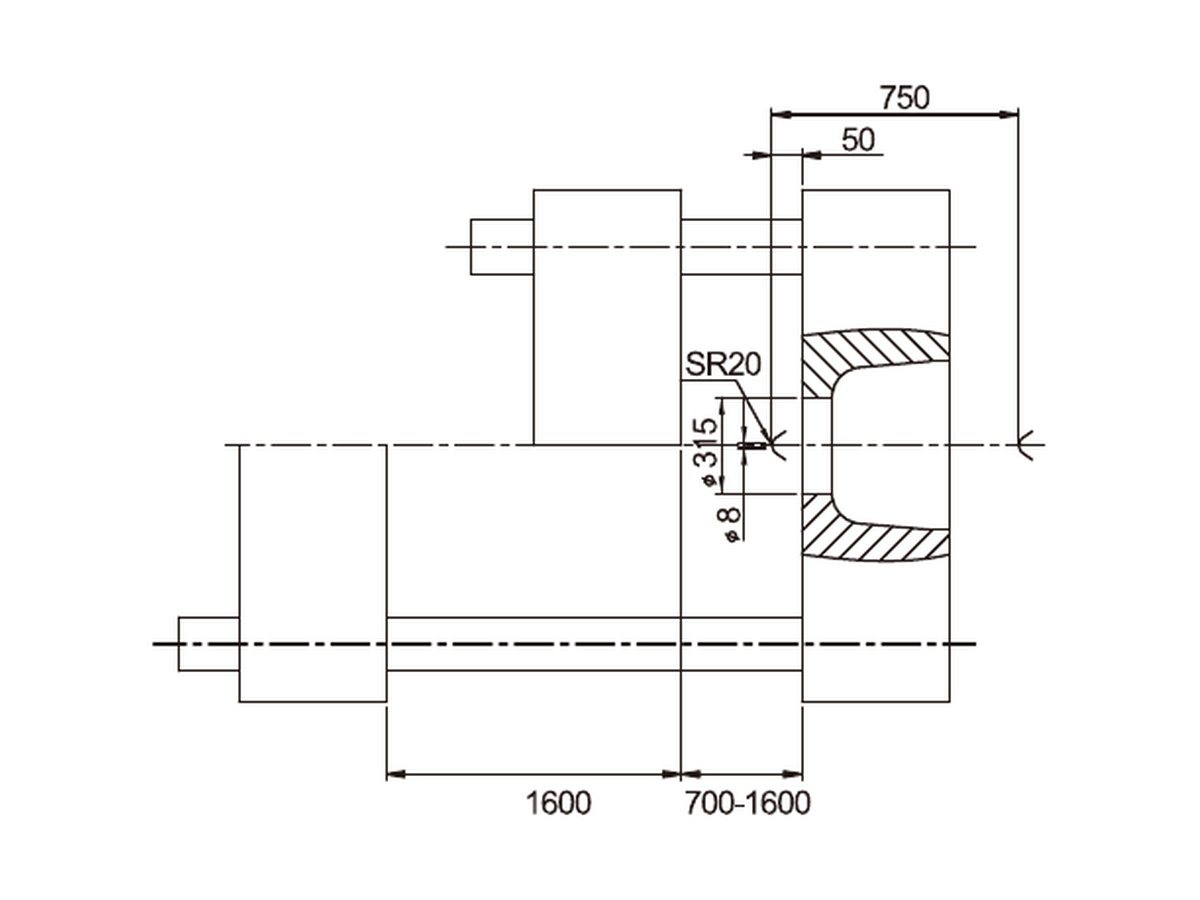

BN-1600 Platen Dimensions
Machine Features
Injection Unit
Select from the screw diameters and injection capacities listed for this model. The injection assembly includes the material hopper, barrel and injection carriage.
Hydraulic Unit
Low resistance oil paths help reduce hydraulic pressure loss and operating noise. Fixed pump and servo drive configurations are selected according to the production requirements.
Electrical Unit
Operator controls support machine parameter setting and process monitoring. Curve display, SPC quality management and controller configuration are confirmed for the selected machine.
Machine Selection
- Choose the screw configuration to suit the resin, shot weight and mold requirements.
- Confirm mold fit using tie-bar spacing, mold height limits and the platen drawings.
- Fixed pump and servo motor ratings describe separate configurations; confirm the required drive system with quotation.
- Series photographs illustrate the machine structure; appearance and controller configuration may vary by model.
Request a Quotation for BN-1600
Send your resin, molded part weight, mold dimensions and output requirements so we can confirm a suitable configuration.
