BN-300 injection molding machine with 3000 kN clamping force, 3 screw configurations and 615 × 615 mm tie-bar spacing.
PRODUCT / BN-300
BN-300 Injection Molding Machine
BN-300 injection molding machine with 3000 kN clamping force, 3 screw configurations and 615 × 615 mm tie-bar spacing.
Compare BN series modelsPRODUCT DETAILS
BN-300 Injection Unit
A, B, C identify the available screw configurations for this machine.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Screw diameter | mm | 55 | 60 | 65 |
| Screw L/D ratio | L/D | 23 | 21 | 19 |
| Theoretical shot volume | cm³ | 677 | 805 | 945 |
| Shot weight (PS) | g | 615 | 732 | 860 |
| Injection pressure | bar | 2286 | 1920 | 1634 |
| Maximum screw speed | 190 rpm |
|---|
Clamping Unit
| Clamping force | 3000 kN |
|---|---|
| Opening stroke | 590 mm |
| Distance between tie-bars | 615 × 615 mm |
| Maximum mold height | 630 mm |
| Minimum mold height | 200 mm |
| Ejector stroke | 150 mm |
| Ejector force | 70 kN |
Power, Dimensions and Weight
| Fixed pump power | 30 kW |
|---|---|
| Servo motor power | 36.7 kW |
| Heating power | 18.3 kW |
| Machine dimensions | 5.98 × 1.66 × 2.35 m |
| Machine weight | 9 t |

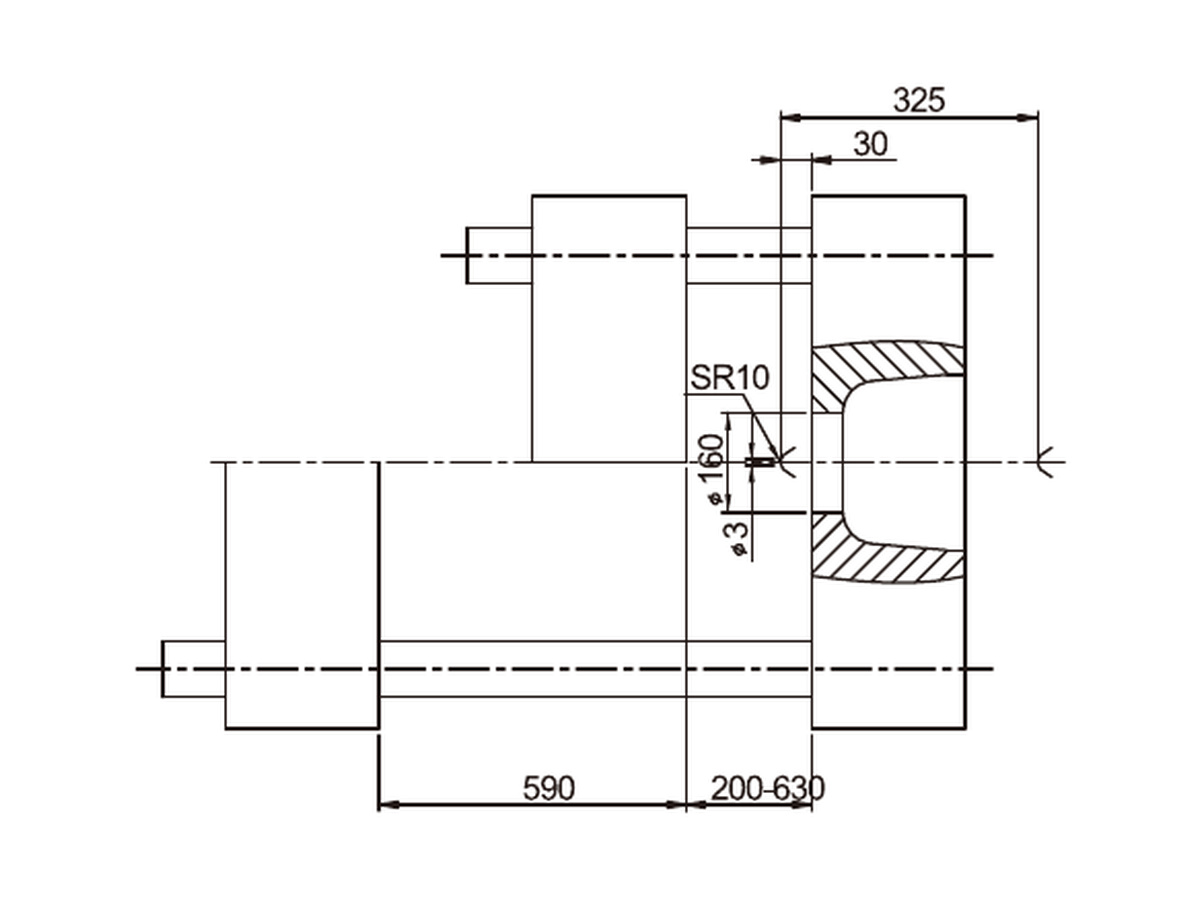

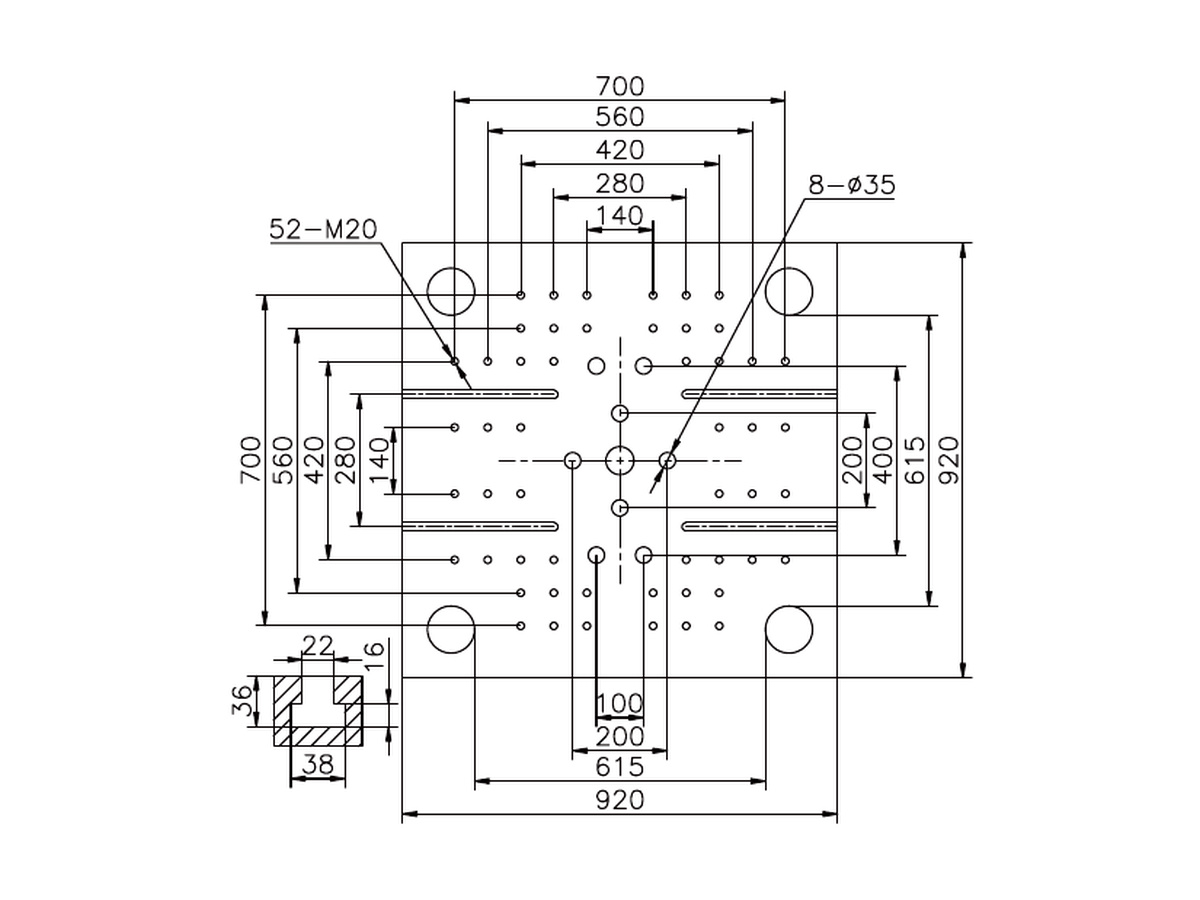

BN-300 Platen Dimensions
Machine Features
Injection Unit
Select from the screw diameters and injection capacities listed for this model. The injection assembly includes the material hopper, barrel and injection carriage.
Hydraulic Unit
Low resistance oil paths help reduce hydraulic pressure loss and operating noise. Fixed pump and servo drive configurations are selected according to the production requirements.
Electrical Unit
Operator controls support machine parameter setting and process monitoring. Curve display, SPC quality management and controller configuration are confirmed for the selected machine.
Machine Selection
- Choose the screw configuration to suit the resin, shot weight and mold requirements.
- Confirm mold fit using tie-bar spacing, mold height limits and the platen drawings.
- Fixed pump and servo motor ratings describe separate configurations; confirm the required drive system with quotation.
- Series photographs illustrate the machine structure; appearance and controller configuration may vary by model.
Request a Quotation for BN-300
Send your resin, molded part weight, mold dimensions and output requirements so we can confirm a suitable configuration.
