BNK-200 Servo Injection Molding Machine
BNK-200 servo injection molding machine with 2000 kN clamping force, 3 screw configurations and 530 × 470 mm tie-bar spacing.
Compare BNK series modelsPRODUCT DETAILS
BNK-200 Injection Unit
A, B, C identify the available screw configurations for this machine.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Screw diameter | mm | 40 | 45 | 50 |
| Screw L/D ratio | L/D | 22.5 | 20 | 18 |
| Theoretical shot volume | cm³ | 276 | 349 | 431 |
| Shot weight (PS) | g | 252 | 318 | 394 |
| Injection pressure | — | On request | On request | On request |
| Maximum screw speed | 180 rpm |
|---|
Clamping Unit
| Clamping force | 2000 kN |
|---|---|
| Opening stroke | 440 mm |
| Distance between tie-bars | 530 × 470 mm |
| Maximum mold height | 510 mm |
| Minimum mold height | 200 mm |
| Ejector stroke | 135 mm |
| Ejector force | 53 kN |
Power, Dimensions and Weight
| Servo motor power | 23 kW |
|---|---|
| Heating power | 14.1 kW |
| Machine dimensions | 5.50 × 1.50 × 2.20 m |
| Machine weight | 5.5 t |

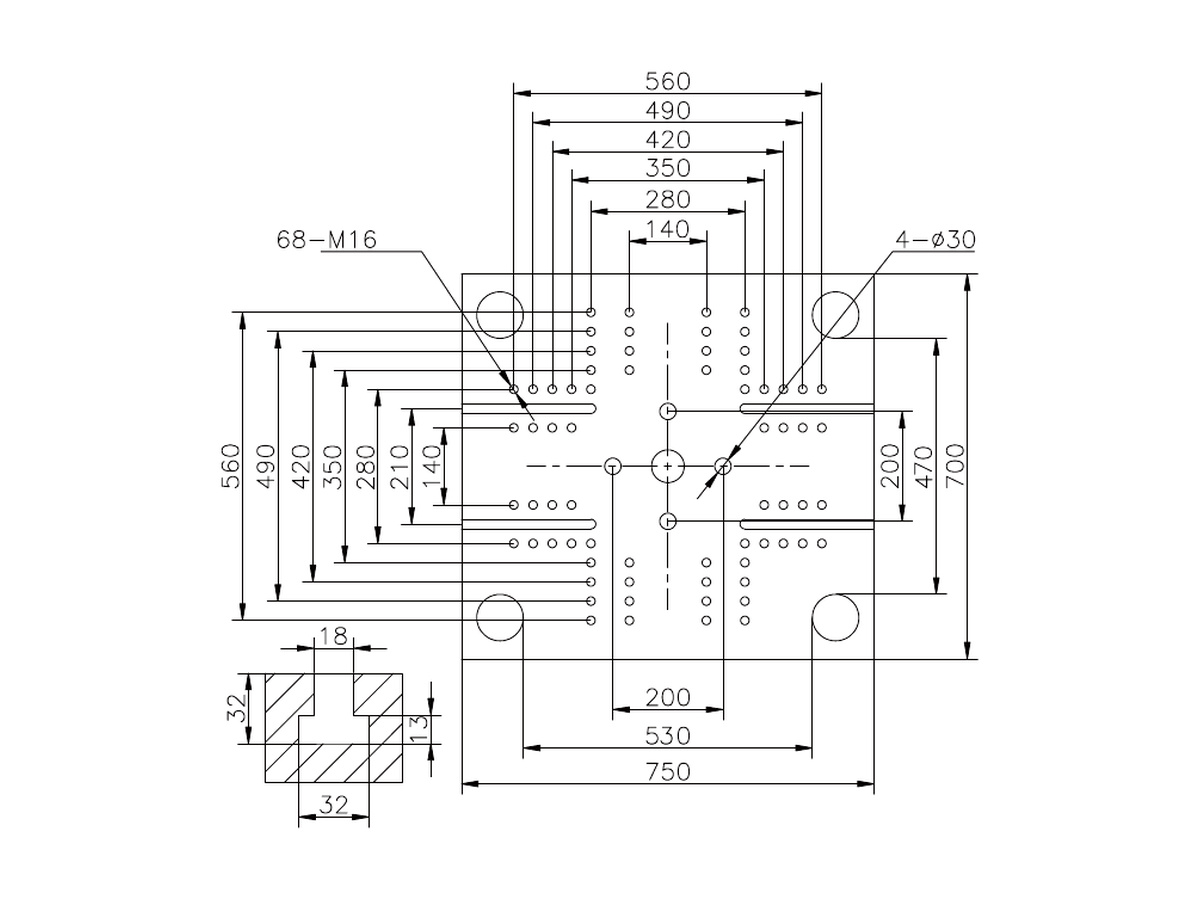

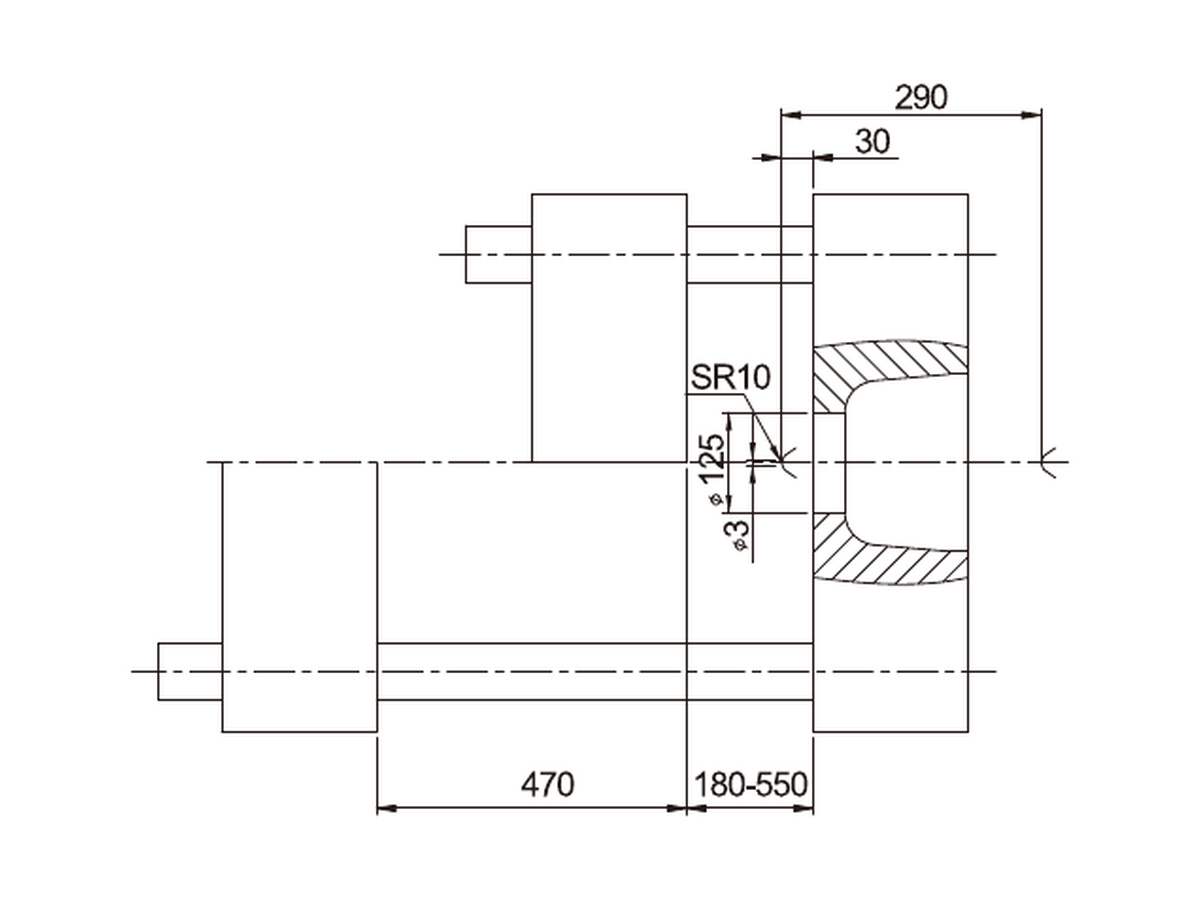

BNK-200 Platen Dimensions
Machine Features
Injection Unit
Select from the screw diameters and injection capacities listed for this model. The injection assembly includes the material hopper, barrel and injection carriage.
Hydraulic Unit
Low resistance oil paths help reduce hydraulic pressure loss and operating noise. Servo motor configuration is listed in the technical specifications.
Electrical Unit
Operator controls support machine parameter setting and process monitoring. Curve display, SPC quality management and controller configuration are confirmed for the selected machine.
Machine Selection
- Choose the screw configuration to suit the resin, shot weight and mold requirements.
- Confirm mold fit using tie-bar spacing, mold height limits and the platen drawings.
- Injection pressure is confirmed with quotation for the selected injection unit.
- Series photographs illustrate the machine structure; appearance and controller configuration may vary by model.
Request a Quotation for BNK-200
Send your resin, molded part weight, mold dimensions and output requirements so we can confirm a suitable configuration.
