Clamping Unit
Box type rigid clamping structure with guide support and an optimized toggle mechanism. Mold height adjustment and a mechanical safety lock support mold setup and operation.
MINY / PRODUCTS
INJECTION MOLDING
BNK-280 servo injection molding machine with 2800 kN clamping force, 3 screw configurations and 620 × 570 mm tie-bar spacing.
PRODUCT / BNK-280
BNK-280 Servo Injection Molding Machine
BNK-280 servo injection molding machine with 2800 kN clamping force, 3 screw configurations and 620 × 570 mm tie-bar spacing.
Compare BNK series modelsPRODUCT DETAILS
BNK-280 Injection Unit
A, B, C identify the available screw configurations for this machine.
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Screw diameter | mm | 55 | 60 | 65 |
| Screw L/D ratio | L/D | 22 | 20 | 18.5 |
| Theoretical shot volume | cm³ | 713 | 848 | 995 |
| Shot weight (PS) | g | 649 | 772 | 906 |
| Injection pressure | — | On request | On request | On request |
| Maximum screw speed | 178 rpm |
|---|
Clamping Unit
| Clamping force | 2800 kN |
|---|---|
| Opening stroke | 550 mm |
| Distance between tie-bars | 620 × 570 mm |
| Maximum mold height | 610 mm |
| Minimum mold height | 230 mm |
| Ejector stroke | 150 mm |
| Ejector force | 70 kN |
Power, Dimensions and Weight
| Servo motor power | 35.9 kW |
|---|---|
| Heating power | 20.9 kW |
| Machine dimensions | 6.00 × 1.90 × 2.30 m |
| Machine weight | 9.5 t |

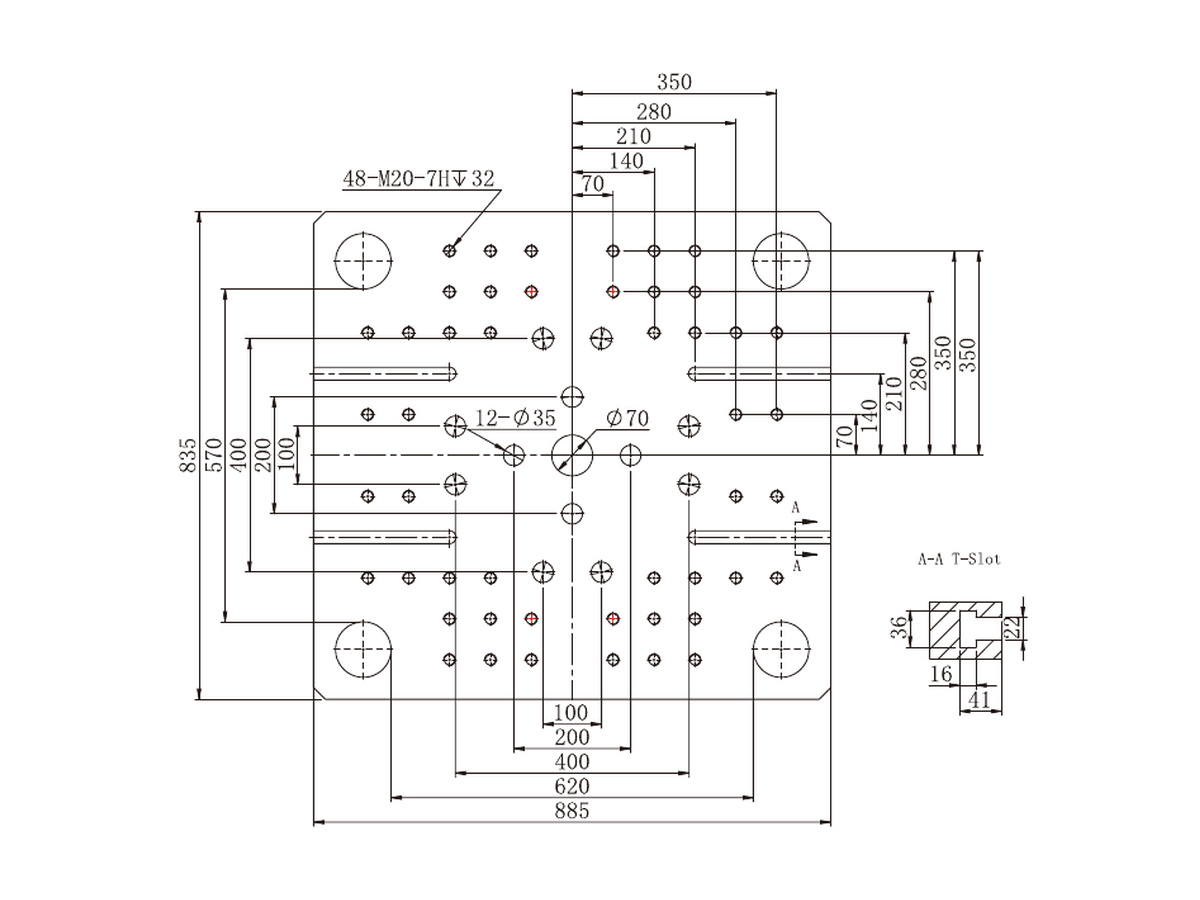

BNK-280 Platen Dimensions
Machine Features
Injection Unit
Select from the screw diameters and injection capacities listed for this model. The injection assembly includes the material hopper, barrel and injection carriage.
Hydraulic Unit
Low resistance oil paths help reduce hydraulic pressure loss and operating noise. Servo motor configuration is listed in the technical specifications.
Electrical Unit
Operator controls support machine parameter setting and process monitoring. Curve display, SPC quality management and controller configuration are confirmed for the selected machine.
Machine Selection
- Choose the screw configuration to suit the resin, shot weight and mold requirements.
- Confirm mold fit using tie-bar spacing, mold height limits and the platen drawings.
- Injection pressure is confirmed with quotation for the selected injection unit.
- Series photographs illustrate the machine structure; appearance and controller configuration may vary by model.
Request a Quotation for BNK-280
Send your resin, molded part weight, mold dimensions and output requirements so we can confirm a suitable configuration.
