PRODUCT / KS100
KS100 Automatic Extrusion Blow Molding Machine
The KS100 is an automatic extrusion blow molding machine for hollow plastic containers up to 120 L. Inverter-driven screw speed control and computer-controlled barrel heating support different processing requirements.
- Model
- KS100
- Container capacity
- Up to 120 L
- Accumulator head capacity
- 12 L
- Plasticizing capacity (HDPE)
- 180 kg/h

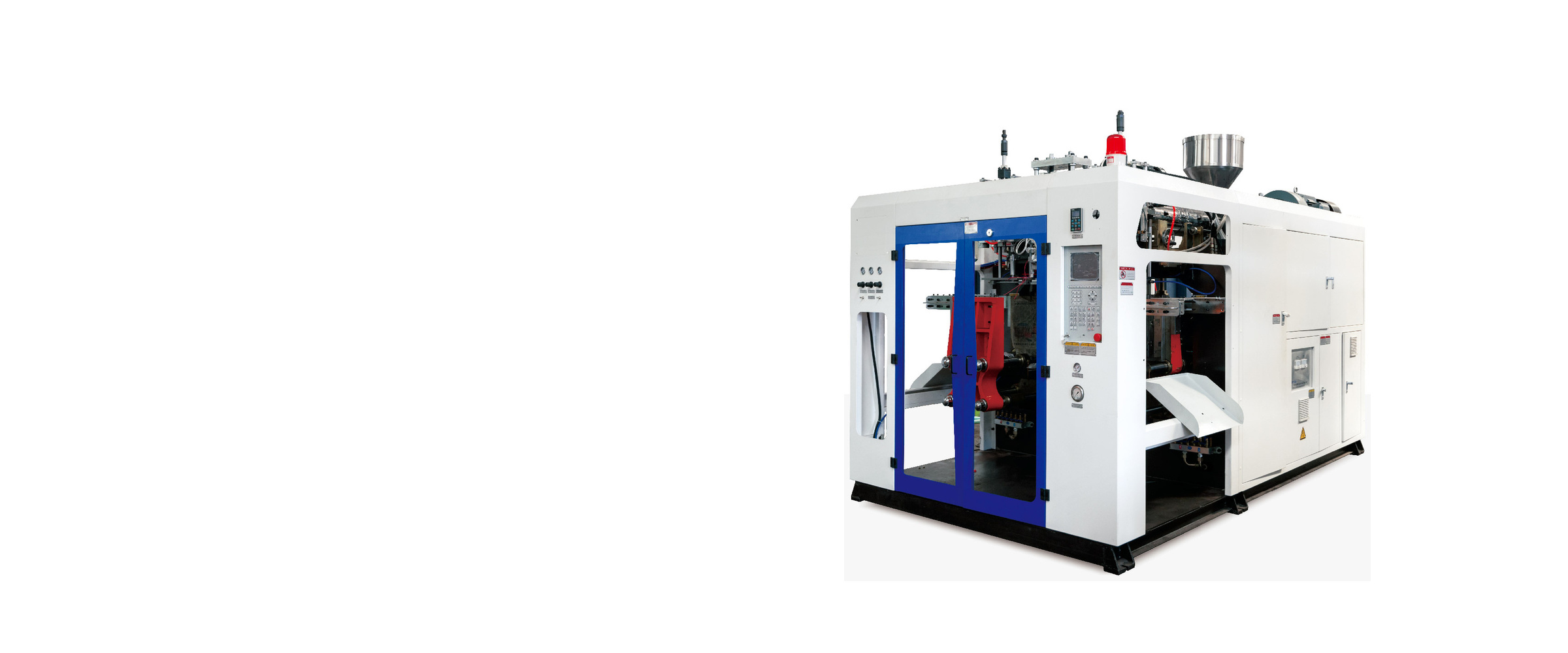

KS85 / KS90 / KS100 series machine shown.
PRODUCT DETAILS
Product Overview
The KS100 uses an inverter-driven motor to adjust screw rotation speed for different plastic processing requirements. A large L/D screw supports plasticizing, while computer-controlled resistance heating helps maintain stable and even barrel temperatures. The hydraulic and pneumatic systems are designed for stable, fast machine movement. The machine has a maximum container capacity of 120 L and an accumulator head capacity of 12 L.
Key Features
- Inverter-driven motor for adjustable screw speed.
- Large L/D screw for plasticizing.
- Computer-controlled resistance heating for the barrel.
- Hydraulic and pneumatic systems designed for stable, fast movement.
Technical Specifications
| System | Parameter | KS100 |
|---|---|---|
| General specifications | Maximum container capacity | 120 L |
| Number of die heads | 1 | |
| Machine dimensions (L × W × H) | 6 × 3 × 4.5 m | |
| Machine weight | 17 t | |
| Clamping system | Clamping force | 360 kN |
| Platen opening stroke | 500–1200 mm | |
| Platen travel | 700 mm | |
| Maximum mould size (W × H) | 950 × 1400 mm | |
| Extruder unit | Screw diameter | 100 mm |
| Screw L/D ratio | 24:1 | |
| Plasticizing capacity (HDPE) | 180 kg/h | |
| Screw heating zones | 5 | |
| Screw heating power | 30 kW | |
| Fan power | 0.75 kW | |
| Extruder drive power | 75 kW | |
| Accumulator head capacity | 12 L | |
| Die head | Die head heating zones | 5 |
| Die head heating power | 25 kW | |
| Maximum die-core diameter | 450 mm | |
| Energy & utilities | Total installed power | 175 kW |
| Oil pump motor power | 30 kW | |
| Air pressure | 1 MPa | |
| Average power consumption | 75 kW | |
| Compressed air consumption | 2 m³/min | |
| Cooling water consumption | 40 L/min |
Basic Equipment
| System | Basic equipment |
|---|---|
| Clamping system | Double-station parallel carriage with high-precision linear guides. |
| Extrusion system | Hardened-gear reducer with imported inverter. |
| Die system | Special-steel extrusion die with central material inlet. |
| Pneumatic system | Imported pneumatic components. |
| Control system | Imported PLC and touchscreen with a PLC automatic temperature-control module, or a dedicated blow-molding machine controller. |
Applications

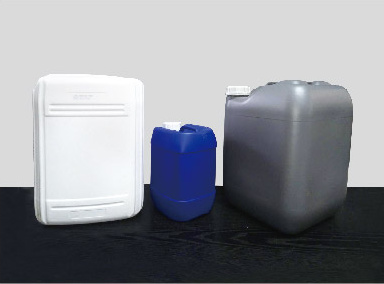

Suitable for producing large hollow plastic containers up to 120 L. The examples below are presented for the KS85 / KS90 / KS100 series.
