Automatic extrusion blow molding for containers up to 5 L, with parallel carriage movement, automatic lubrication and an optional double-layer die head.
PRODUCT / KS75D
KS75D Automatic Extrusion Blow Molding Machine
The KS75D is an automatic extrusion blow molding machine for food, pharmaceutical and cosmetic packaging. Parallel carriage movement and automatic lubrication support stable operation and straightforward control.
- Model
- KS75D
- Container capacity
- Up to 5 L
- Materials
- PE, PP, PVC, PA
- Plasticizing capacity (HDPE)
- 80 kg/h
PRODUCT DETAILS
Product Overview
The KS75D produces hollow plastic containers up to 5 L. It uses parallel carriage movement with automatic lubrication and supports 1, 2, 3, 4 or 6 die heads. A double-layer die head is optional.
Key Features
- Parallel carriage movement for stable operation.
- Automatic lubrication system.
- Straightforward machine operation.
- Optional double-layer die head.
Technical Specifications
| System | Parameter | KS75D |
|---|---|---|
| General specifications | Materials | PE, PP, PVC, PA |
| Maximum container capacity | 5 L | |
| Number of die heads | 1, 2, 3, 4 or 6 | |
| Machine dimensions (L × W × H) | 3.6 × 2.2 × 2.36 m | |
| Machine weight | 5.5 t | |
| Clamping system | Clamping force | 90 kN |
| Platen opening stroke | 180–480 mm | |
| Platen travel | 300 mm | |
| Maximum mould size (W × H) | 430 × 400 mm | |
| Extruder unit | Screw diameter | 75 mm |
| Screw L/D ratio | 24:1 | |
| Plasticizing capacity (HDPE) | 80 kg/h | |
| Screw heating zones | 3 | |
| Screw heating power | 14.1 kW | |
| Fan power | 0.18 kW | |
| Extruder drive power | 22 kW | |
| Die head | Die head heating zones | 2 |
| Die head heating power | 6.5 kW | |
| Energy & utilities | Total installed power | 49.14 kW |
| Oil pump motor power | 11 kW | |
| Air pressure | 0.6–0.8 MPa | |
| Average power consumption | 28 kW | |
| Compressed air consumption | 1.2 m³/min | |
| Cooling water consumption | 40 L/min |
Basic Equipment
| System | Basic equipment |
|---|---|
| Clamping system | Double-station parallel carriage with high-precision linear guides. |
| Extrusion system | Hardened-gear reducer with imported inverter. |
| Die system | Special-steel extrusion die with central material inlet. |
| Pneumatic system | Imported pneumatic components. |
| Control system | Imported PLC and touchscreen with a PLC automatic temperature-control module, or a dedicated blow-molding machine controller. |
Applications

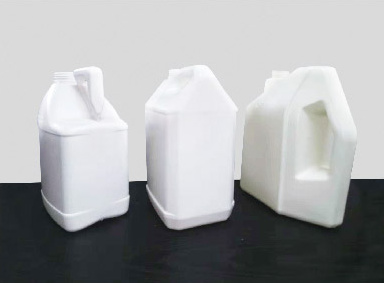

Suitable for producing hollow plastic containers for food, pharmaceutical and cosmetic packaging.
