BLOW MOLDING
Automatic extrusion blow molding for products up to 10 L, with four-tie-bar clamping for heavier moulds and an optional parison control system.
PRODUCT / KS80D
KS80D Automatic Extrusion Blow Molding Machine
The KS80D uses a four-tie-bar clamping structure capable of supporting heavier moulds. It produces hollow plastic containers and parts up to 10 L, with an optional parison control system.
- Model
- KS80D
- Container capacity
- Up to 10 L
- Materials
- PE, PP, PVC, PA
- Plasticizing capacity (HDPE)
- 100 kg/h
PRODUCT DETAILS
Product Overview
The KS80D is designed for hollow plastic products up to 10 L, including toys and plastic parts for cars and motorcycles. Its four-tie-bar clamping structure supports heavier moulds. A parison control system is optional. Die head configurations include 1, 2, 3, 4, 6 or 8 heads.
Key Features
- Four-tie-bar clamping structure.
- Supports heavier moulds.
- Optional parison control system.
- 80 mm screw with an HDPE plasticizing capacity of 100 kg/h.
Technical Specifications
| System | Parameter | KS80D |
|---|---|---|
| General specifications | Materials | PE, PP, PVC, PA |
| Maximum container capacity | 10 L | |
| Number of die heads | 1, 2, 3, 4, 6 or 8 | |
| Machine dimensions (L × W × H) | 4 × 2.3 × 2.5 m | |
| Machine weight | 8.2 t | |
| Clamping system | Clamping force | 150 kN |
| Platen opening stroke | 220–620 mm | |
| Platen travel | 400 mm | |
| Maximum mould size (W × H) | 520 × 460 mm | |
| Extruder unit | Screw diameter | 80 mm |
| Screw L/D ratio | 24:1 | |
| Plasticizing capacity (HDPE) | 100 kg/h | |
| Screw heating zones | 4 | |
| Screw heating power | 19.6 kW | |
| Fan power | 0.22 kW | |
| Extruder drive power | 30 kW | |
| Die head | Die head heating zones | 2 |
| Die head heating power | 13.5 kW | |
| Energy & utilities | Total installed power | 74.98 kW |
| Oil pump motor power | 15 kW | |
| Air pressure | 0.6–0.8 MPa | |
| Average power consumption | 35 kW | |
| Compressed air consumption | 1.5 m³/min | |
| Cooling water consumption | 40 L/min |
Basic Equipment
| System | Basic equipment |
|---|---|
| Clamping system | Double-station parallel carriage with high-precision linear guides. |
| Extrusion system | Hardened-gear reducer with imported inverter. |
| Die system | Special-steel extrusion die with central material inlet. |
| Pneumatic system | Imported pneumatic components. |
| Control system | Imported PLC and touchscreen with a PLC automatic temperature-control module, or a dedicated blow-molding machine controller. |
Applications

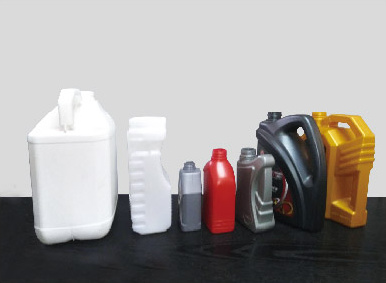

Suitable for hollow plastic products up to 10 L, including toys and plastic parts for cars and motorcycles, as well as the container examples shown below.
