KS60D Automatic Extrusion Blow Molding Machine
The KS60D is an automatic extrusion blow molding machine for food, pharmaceutical and cosmetic packaging. Parallel carriage movement and automatic lubrication support stable operation and straightforward control.
- Model
- KS60D
- Container capacity
- Up to 2 L
- Materials
- PE, PP, PVC, PA
- Plasticizing capacity (HDPE)
- 60 kg/h
PRODUCT DETAILS
Product Overview
The KS60D combines parallel carriage movement with automatic lubrication. The machine offers a maximum container capacity of 2 L and can be configured with 1, 2, 3 or 4 die heads. A double-layer die head is optional.
Key Features
- Parallel carriage movement for stable operation.
- Automatic lubrication system.
- Straightforward machine operation.
- Optional double-layer die head.
Technical Specifications
| System | Parameter | KS60D |
|---|---|---|
| General specifications | Materials | PE, PP, PVC, PA |
| Maximum container capacity | 2 L | |
| Number of die heads | 1, 2, 3 or 4 | |
| Machine dimensions (L × W × H) | 2.87 × 2.14 × 2.28 m | |
| Machine weight | 3.5 t | |
| Clamping system | Clamping force | 40 kN |
| Platen opening stroke | 120–350 (unit to be confirmed) | |
| Platen travel | 230 mm | |
| Maximum mould size (W × H) | 360 × 300 mm | |
| Extruder unit | Screw diameter | 60 mm |
| Screw L/D ratio | 24:1 | |
| Plasticizing capacity (HDPE) | 60 kg/h | |
| Screw heating zones | 3 | |
| Screw heating power | 10.1 kW | |
| Fan power | 0.18 kW | |
| Extruder drive power | 15 kW | |
| Die head | Die head heating zones | 2 |
| Die head heating power | 4.2 kW | |
| Energy & utilities | Total installed power | 33.34 kW |
| Oil pump motor power | 9.5 kW | |
| Air pressure | 0.6–0.8 MPa | |
| Average power consumption | 23.9 kW | |
| Compressed air consumption | 0.8–1 m³/min | |
| Cooling water consumption | 30 L/min |
Basic Equipment
| System | Basic equipment |
|---|---|
| Clamping system | Double-station parallel carriage with high-precision linear guides. |
| Extrusion system | Hardened-gear reducer with imported inverter. |
| Die system | Special-steel extrusion die with central material inlet. |
| Pneumatic system | Imported pneumatic components. |
| Control system | Imported PLC and touchscreen with a PLC automatic temperature-control module, or a dedicated blow-molding machine controller. |
Applications

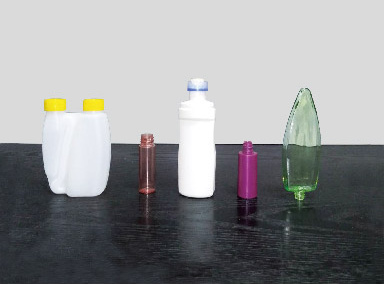

Suitable for producing hollow plastic containers for food, pharmaceutical and cosmetic packaging.
