PRODUCT / KS80FD
KS80FD Automatic Extrusion Blow Molding Machine
The KS80FD combines toggle clamping with full linear guides for fast movement. Auxiliary functions support automatic production of hollow plastic containers up to 10 L.
- Model
- KS80FD
- Container capacity
- Up to 10 L
- Materials
- PE, PP, PVC, PA
- Plasticizing capacity (HDPE)
- 100 kg/h
PRODUCT DETAILS
Product Overview
The KS80FD is intended for automated production with higher output and production requirements. The machine supports 1, 2, 3 or 4 die heads and uses an 80 mm screw with an L/D ratio of 26:1. Its HDPE plasticizing capacity is 100 kg/h.
Key Features
- Toggle clamping structure with full linear guides.
- Fast machine movement.
- Auxiliary functions for automated production.
- Straightforward machine operation.
Technical Specifications
| System | Parameter | KS80FD |
|---|---|---|
| General specifications | Materials | PE, PP, PVC, PA |
| Maximum container capacity | 10 L | |
| Number of die heads | 1, 2, 3 or 4 | |
| Machine dimensions (L × W × H) | 4.2 × 2.9 × 2.8 m | |
| Machine weight | Not specified | |
| Clamping system | Clamping force | 60 kN |
| Platen opening stroke | 240–600 (unit to be confirmed) | |
| Platen travel | 360 mm | |
| Maximum mould size (W × H) | 500 × 360 mm | |
| Extruder unit | Screw diameter | 80 mm |
| Screw L/D ratio | 26:1 | |
| Plasticizing capacity (HDPE) | 100 kg/h | |
| Screw heating zones | 4 | |
| Screw heating power | 19.6 kW | |
| Fan power | 0.56 kW | |
| Extruder drive power | 30 kW | |
| Die head | Die head heating zones | 2 |
| Die head heating power | 8.5 kW | |
| Energy & utilities | Total installed power | Approx. 75 kW |
| Oil pump motor power | 15 kW | |
| Air pressure | 0.6–0.8 MPa | |
| Average power consumption | 45 kW | |
| Compressed air consumption | 1.5 m³/min | |
| Cooling water consumption | 50 L/min |
Basic Equipment
| System | Basic equipment |
|---|---|
| Clamping system | Double-station parallel carriage with high-precision linear guides. |
| Extrusion system | Hardened-gear reducer with imported inverter. |
| Die system | Special-steel extrusion die with central material inlet. |
| Pneumatic system | Imported pneumatic components. |
| Control system | Imported PLC and touchscreen with a PLC automatic temperature-control module, or a dedicated blow-molding machine controller. |
Applications

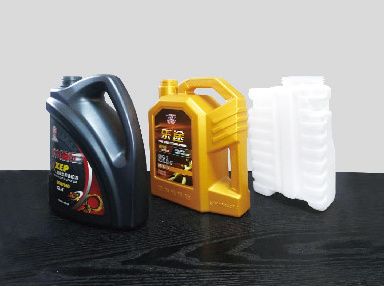

Suitable for automatic production of hollow plastic containers up to 10 L. Handled container examples are shown below.
