BLOW MOLDING
Automatic extrusion blow molding for containers up to 10 L, with toggle clamping, full linear guides and auxiliary functions for automated production.
PRODUCT / KS70&IML
KS70 & IML Automatic Extrusion Blow Molding Machine
The KS70 & IML uses a toggle clamping structure with full linear guides for fast movement. Auxiliary functions support automatic production of hollow plastic containers up to 10 L.
- Model
- KS70 & IML
- Container capacity
- Up to 10 L
- Materials
- PE, PP, PVC, PA
- Plasticizing capacity (HDPE)
- 80 kg/h
PRODUCT DETAILS
Product Overview
The KS70 & IML is intended for automated production with higher output and production requirements. The machine combines toggle clamping and full linear guides with auxiliary functions. It supports 1, 2, 3 or 4 die heads and an HDPE plasticizing capacity of 80 kg/h.
Key Features
- Toggle clamping structure with full linear guides.
- Fast machine movement.
- Auxiliary functions for automated production.
- Straightforward operation for automatic production lines.
Technical Specifications
| System | Parameter | KS70 & IML |
|---|---|---|
| General specifications | Materials | PE, PP, PVC, PA |
| Maximum container capacity | 10 L | |
| Number of die heads | 1, 2, 3 or 4 | |
| Machine dimensions (L × W × H) | 3.7 × 2.3 × 2.5 m | |
| Machine weight | 8 t | |
| Clamping system | Clamping force | 160 kN |
| Platen opening stroke | 240–600 mm | |
| Platen travel | 360 mm | |
| Maximum mould size (W × H) | 500 × 360 mm | |
| Extruder unit | Screw diameter | 75 mm |
| Screw L/D ratio | 24:1 | |
| Plasticizing capacity (HDPE) | 80 kg/h | |
| Screw heating zones | 3 | |
| Screw heating power | 12 kW | |
| Fan power | 0.1 kW | |
| Extruder drive power | 22 kW | |
| Die head | Die head heating zones | 3 |
| Die head heating power | 9.1 kW | |
| Energy & utilities | Total installed power | 58.2 kW |
| Oil pump motor power | 15 kW | |
| Air pressure | 0.6–0.8 MPa | |
| Average power consumption | 32 kW | |
| Compressed air consumption | 1.5 m³/min | |
| Cooling water consumption | 50 L/min |
Basic Equipment
| System | Basic equipment |
|---|---|
| Clamping system | Double-station parallel carriage with high-precision linear guides. |
| Extrusion system | Hardened-gear reducer with imported inverter. |
| Die system | Special-steel extrusion die with central material inlet. |
| Pneumatic system | Imported pneumatic components. |
| Control system | Imported PLC and touchscreen with a PLC automatic temperature-control module, or a dedicated blow-molding machine controller. |
Applications

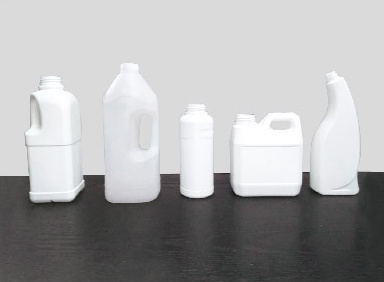

Suitable for automated production of hollow plastic bottles and containers up to 10 L. The examples below show container shapes presented with this model.
